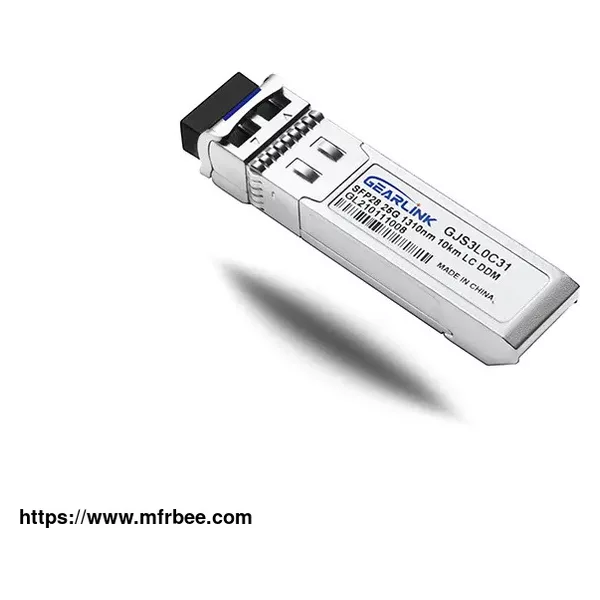

SFP28 25G 1310nm 10km DDM LC Transceiver
Product Quick Detail
- Place Of Origin
- Wuhan city, Hubei province, China, 430000.
- Packaging
- Blister box & single package
- Delivery
- 7 working days after order confirmation
Specifications
SYSP8A10D SFP28 lr transceivers, according to 25 Gigabit Small Form Factor Pluggable “SFP28”(25ge sfp28) Multi-Sourcing Agreement (MSA) SFF-8431 Rev.4.1 and SFF-8472 Rev. 12.1, are designed for use
up to 25.78Gb/s data rate and up to 10km link length. They are compatible with SFF-8432.
Compatibility of SFP28 25G 1310nm 10km DDM LC Transceiver
SFP-25G-LR-S 25G SFP28 1310nm 10km
Technical Specification Of SFP28 25G 1310nm 10km DDM LC Transceiver
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Storage Temperature TS -40 85 ℃
Supply Voltage VCC3 -0.5 4 V
Relative Humidity(Non-condensing) RH 5 85 %
Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Unit
Operating Case Temperature TC 0 25 70 ℃
TC -40 25 85 ℃
Power Supply Voltage VCC3 3.135 3.3 3.465 V
Data Rate - - 24.33 28 Gbps
25.78
As a fiber optic transceiver supplier, we can provide kinds of transceiver module for sale, if you are interested, please contact us.
