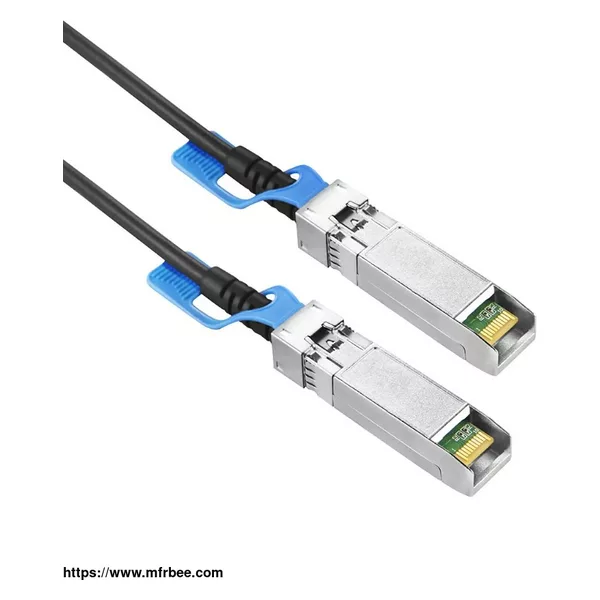

SFP28 25G Copper Twinax Cable XM DAC

SFP28 Direct Attach Cables (25g sfp28 dac) are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m). The SFP28 passive direct attach copper cable assemblies are high-performance, cost-effective I/O solutions for 25G Ethernet. SFP28 DAC copper cables allow hardware manufacturers to achieve high port density, configurability, and utilization at a very low direct attach copper cable sfp+ cost and reduced power budget of passive copper cable.

As one of professional optical transceiver suppliers, we also provide a range of optical transceivers, such as 400g optical transceiver, 100g optical transceivers, 40g qsfp+aatransceiver, 25g sfp28 twinax transceiver, 10g sfp+ transceiver, sfp device, etc.

Compatibility of SFP28 25G Copper Twinax Cable XM DAC

SFP-H25G-CU5M 5M 25G SFP28 DAC

SFP-H25G-CU3M 3M 25G SFP28 DAC

SFP-H25G-CU2M 2M 25G SFP28 DAC

SFP-H25G-CU1M 1M 25G SFP28 DAC

Technical Specification Of SFP28 25G Cable xM

Parameter Symbol Min Typical Max Unit Note

Differential Impedance TDR 90 100 110 Ώ

Insertion loss SDD21 -22.48 -8 dB At 12.8906 GHz

Differential Return Loss SDD11 -12.45 See 1 dB At 0.05 to 4.1 GHz

SDD22 -3.12 See 2 dB At 4.1 to 19 GHz

Common-mode to common-mode output return loss SCC11 -2 dB At 0.2 to 19 GHz

SCC22

Differential to common-mode SCD11 -12 See 3 dB At 0.01 to 12.89 GHz

return loss SCD22 -10.58 See 4 At 12.89 to 19 GHz

Differential to Common Mode SCD21-IL -10 dB At 0.01 to 12.89 GHz

Conversion Loss See 5 At 12.89 to 15.7 GHz

-6.3 At 15.7 to 19 GHz

Channel Operating Margin COM -3 dB

What is a 25G DAC?

25G DAC is a DAC whose actual transmission rate can reach 25G, and 25G DAC can transmit at a distance of less than 7 meters. 25G DACs are generally used in 25G short-distance transmission networks, plugged into 25G optical ports, and connected to another 25G optical port in the same rack or adjacent racks.

Now the price of sfp28 dac cable is reasonable, if you have needs, please contact us.
