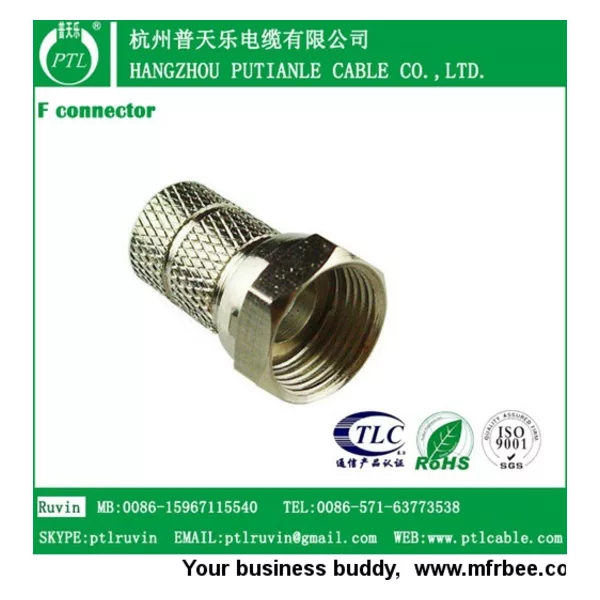

F CONNECTOR
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Features:
Impedance 50Ω,75Ω Frequency range 0-2GHz
Resistance Inner conductor≤2.0mΩ External resistance ≤0.2mΩ
Insulation Resistance ≥5000MΩ Withstand Voltage 1500V rms
Durability 500 times Center Pin Gold-plated pure Copper
Insulator PTFE Frequency response DC to 8 MHz
Attenuation 0.5dB typ Environmental -10°C to +70°C
Storage -30°C to +70°C Humidity 0 to 95%
Wire Type Coaxial cable Category Type Coaxial connector
DC Loop Resistance 52 ohms per 1,000 ft Material Zinc Alloy, Brass, ABS
Withstand Voltage 1500V rms Center Contact ≤ 1.5 ohm
http://www.rg6u.com
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:
- Address:Hengfan Industrial Zone, Lin'an Hangzhou, Zhejiang, China
- Contact:mj mj
