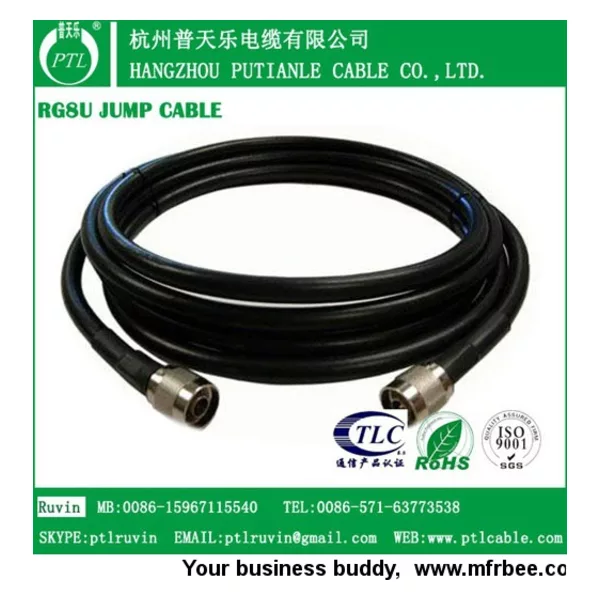

RG8 JUMP CABLE
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
RG8
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Bare Copper or
Copper Clad Aluminum 2.74
2.Dielectric Physical Foam Polyethylene 7.24
3.Outer conductor Bonded Al foil+TC braiding Nom.8.10
4.Jacket PVC or PE 10.16
Electrical Characteristics
1.Capacitance(pF/m) 78.4
2.Impedance(Ω) 50
3.Velocity(%) 85
4.Inner Conductor DC Resistance(Ω/km) 4.91
5.Outer Conductor DC Resistance(Ω/km) 5.41
6.Jacket Spark(kVrms) 8000
7.Peak Power Rating(kW) 16
8.Sheilding Effectiveness(dB)90
http://www.rg6u.com
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Bare Copper or
Copper Clad Aluminum 2.74
2.Dielectric Physical Foam Polyethylene 7.24
3.Outer conductor Bonded Al foil+TC braiding Nom.8.10
4.Jacket PVC or PE 10.16
Electrical Characteristics
1.Capacitance(pF/m) 78.4
2.Impedance(Ω) 50
3.Velocity(%) 85
4.Inner Conductor DC Resistance(Ω/km) 4.91
5.Outer Conductor DC Resistance(Ω/km) 5.41
6.Jacket Spark(kVrms) 8000
7.Peak Power Rating(kW) 16
8.Sheilding Effectiveness(dB)90
http://www.rg6u.com
