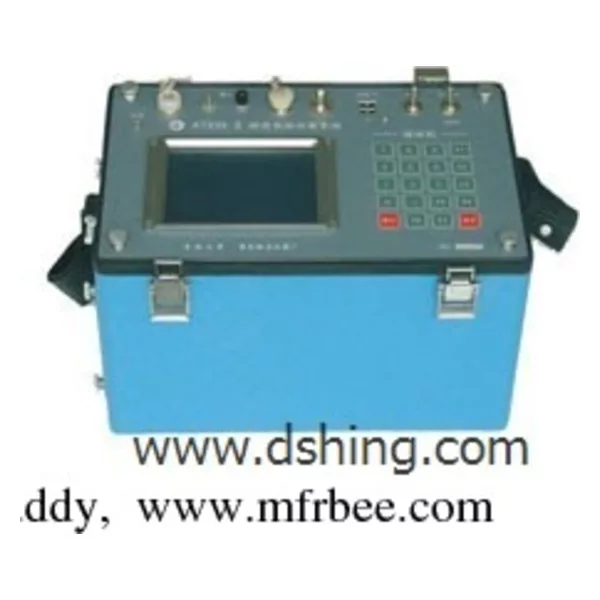

ATEM-3 TEM Water Detector

TEM (Transient Electromagnetic Method) is on the basis of conductivity and magneto conductivity difference of the earth’s rock (ore), applying electromagnetic induction theory to send primary pulsed magnetic field to underground by un-earthing loop or earth wire source. During the interval of primary pulsed magnetic field, the coil or earth electrode can be used to observe secondary turbulence field then study the space and time distribution rules of the field as well. It is a kind of time domain electromagnetic method that can be used to prospect the subsurface minerals and solve other geological problems.

Main Function:
1.Wire synchronization suit for complex geological condition;
2.IGBT bridge circuit to get high power, fast power off portable electromagnetic transmitter
3.High resolution receiver with float point magnify and FPGA technology
4.USB port data transmission is easy for human and device communication; supply a kind of portable electromagnetic system fit for complex geological conditions for geophysical prospecting and engineering detection.

Application:
Water prospecting, engineering exploration, water reconnaissance and environment pollution monitoring etc.

Technical Specification:
Transmitter
Power supply: DC 4V~150V
Rated output power: 3KW
Max output voltage: 150V
Max output current: 50A (continual), 70A (pulse)
Frequency range: power supply 1.25~125Hz(8 frequency points)
Output waveform: 2 types (type0 and type1)
Close time: changing according to the load-wire.
Min. off time: 1.2μs (only resistant load)
Synchronization model: wire synchronization
Dimensions: 360*250*250 mm
Weight: 9Kg
