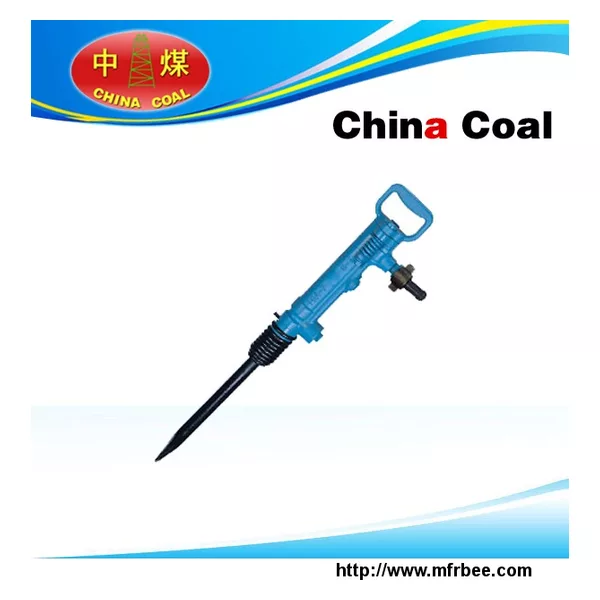

G7 Pneumatic Pick
Product Quick Detail
- Packaging
- according to your requirkments
- Delivery
- 7 Days
Specifications
G7 Pneumatic Pick
Product Introduction
G7 pneumatic pick hammer/handheld pneumatic pick hammer is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.chinacoal05
G7 pneumatic pick hammer/portable pick hammer has higher efficiency and durability owe to its characteristics of short and light, and it is more easy repair and maintenance than others.
Main Characteristics
G7 Pneumatic pick is lighter, more flexible and convenient operation. It's suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken.
It's widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete, frozen earth in construction and installation engineering or constructing works in casting industries.
Technical Parameters
| Type | G7 |
| Weight | 7.2 (Kg) |
| Length | 456 (mm) |
| Cylinder dia | φ35 (mm) |
| Rammar stroke | 120 (mm) |
| Rammar weigh | 0.6 (Kg) |
| Working pressure | 0.4~0.5 (Mpa) |
| Impact energy | ≥30 (J) |
| Impact frequency | ≥21.6 (Hz) |
| Air consumption | ≤20 (L/s) |
| Air pipe inner dia | φ19 (mm) |
Type G7
Weight 7.2 (Kg)
Length 456 (mm)
Cylinder dia 35 (mm)
Rammar stroke 120 (mm)
Rammar weigh 0.6 (Kg)
Working pressure 0.4-0.5 (Mpa)
Impact energy no less than 30 (J)
Impact frequency no less than21.6 (Hz)
Air consumption no more than20 (L/s)
Air pipe inner dia 19 (mm)
