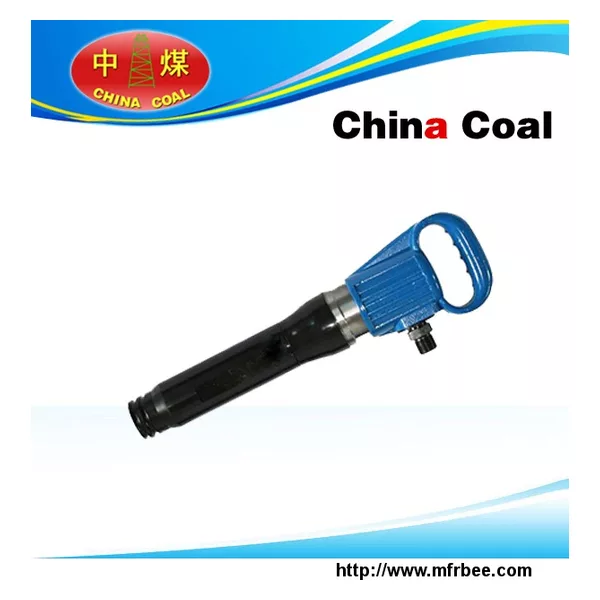

G10 Pneumatic Pick
Product Introduction
Compared with the same other type pick, G10 Pneumatic pick is lighter, more flexible and convenient operation. It's suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken. It's widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete, frozen earth in construction and installation engineering or constructing works in casting industries.chinacoal05
Main Characteristics
1.Strictly control of material using, meet international requested standards.
2.Import bearing parts and use high wear-resisting precision castings to greatly prove the life of the product.
3.Belongs to a kind of pneumatic instrument combined with the mature international technology.
4.Hand-held pneumatic tool, use compressed air to push the piston reciprocating movement, keep the pick up to the impact.
Technical Parameters
Total Length 575mm
Weight 10.9kg
Rammer weight 0.9kg
Rammer dia 38mm
Rammer stroke 155mm
Air pressure 0.63Mpa
Impact energy 43J
Impact frequency 16Hz
Air consumption 26L/s
Air pipe inner dia 16mm
Drill 500mm
