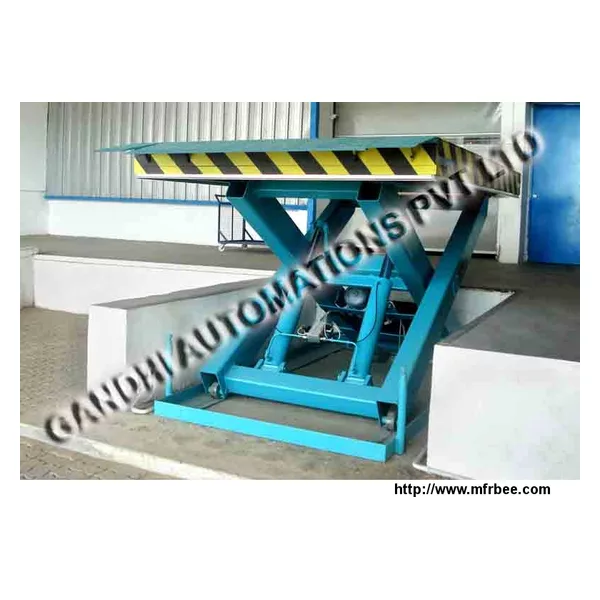

Lift Tables

India’s No.1 Entrance Automation & Loading Bay Equipment Company Gandhi Automations Offers a wide range of Lift Tables, with safety and reliability features that provide an effective solution to most lifting problems. The safety of the operator during the use of our Lift Tables is paramount. Our tables comply with the European safety of machinery standards EN 292. Machinery Directive 98/37/EC and safety requirements for Lift Tables EN 1570. All models include:

· Aluminium safety bar, stopping the descent of the platform on contact with obstructions.

· Safety clearance between scissors to prevent trapping during operation.

· Safety check valve to stop the lift table lowering in the unlikely event of a hose break .

· Protection against overloading

· Low voltage control box with up-down buttons and emergency stop.

· Maintenance props (for safe maintenance operation)

· Removable lifting eyes to facilitate handling and Lift Table installation.

Gandhi Automations has a wide range of Lift Tables and options available to meet different requirements. Due to our wide experience we are able to provide customized solutions.

Type 1-E Ergo-lift single scissor for evenly distributed load.

Designed as a “work station” to provide improved ergonomic conditions to ensure the health , safety and comfort of the operator together with improved productivity.

· Load applied : evenly distributed

· Top platform smooth surface

· Max. 20 cycles per hour. One shift a day

· Single acting hydraulic cylinders with drainage

· Upper and lower travel limited by mechanical stops

· Self lubricating bearings on pivot points

· Hydraulic power pack inside the table provided with relief valve against overloading and compensated flow valve for controlled lowering speed

· Electrical equipment controlled by electronic system. With low voltage transformer and thermal overload protection

· Wide range of accessories available to achieve even higher safety functions where conditions require.
