Ladder, truss, T shape or brick welded mesh

Masonry mesh, also called masonry wall reinforced mesh, is used for concrete construction reinforcement, normally used for the wall reinforcement. It is a welded and fabricated steel reinforcing structure which is laid in the bed joint to strengthen masonry panels without thickening the wall. It can prevent or reduce cracking in walls by bonding the masonry units together so as to strengthen the masonry panel where it is installed.

Features

• Welded spots of warp wire and weft wire are on the same surface.
• It increases lateral flexural strength and performance of masonry walls under various stresses.
• It improves resistance to water penetration and shrinkage cracking of masonry walls.

Variety according to shapes

• Ladder mesh reinforcement.
• Truss mesh reinforcement.
• T shape masonry mesh reinforcement.
• Brick welded mesh reinforcement.

Different materials and surface treatment

• Material: Low carbon steel wire, stainless steel wire, galvanized steel wire.
• Welded before electric-galvanized.
• Welded after electric-galvanized.
• Welded before hot dipped galvanized.
• Welded after hot dipped galvanized.
• Welded by stainless steel wire.

Ladder mesh reinforcement

• Wire diameter: 2.5mm - 8.0mm.
• Standard length: 10' (3.05m).
• Width: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm.
• Cross wires are 300mm to 400mm apart.

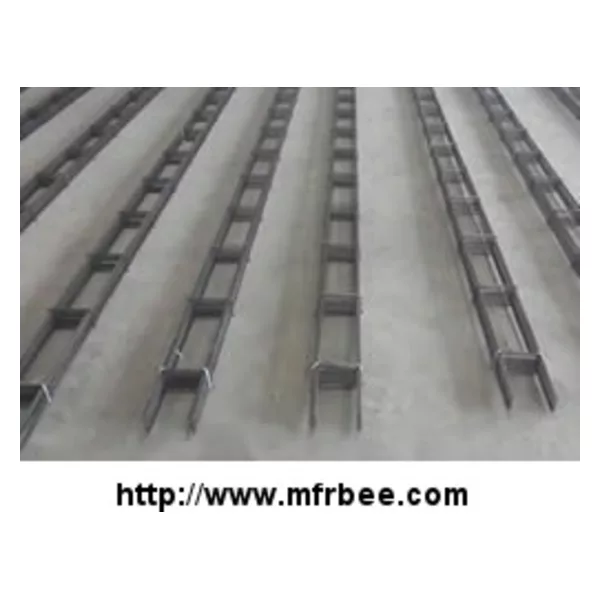

Ladder mesh reinforcement used for masonry wall in building industry

Truss mesh reinforcement

• Wire diameter: 2.5mm - 8.0mm.
• Standard length: 3.05m.
• Width: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm.
• Type: two longitudinal rods; three longitudinal rods; four longitudinal rods.

Truss mesh with side to side rods and three or four longitudinal rods performs better bonding performance

T shape masonry mesh

• Wire diameter: 2.5mm - 8.0mm.
• Typical use: it can be used for brick wall corner reinforcement because of its typical T shape.

A bundle of T shape masonry meshes used for wall corner reinforcement

Brick welded mesh

• Wire diameter: 2.5mm - 8.0mm.
• Length: as your requirement.
• Typical use: in rolls, it can be cut and bent easily.

A roll of brick welded mesh normally used in the wall reinforcement

Note: all sizes can be made according to the wall width and your construction need.

Packing
Carton box, plastic wrapped, pallet.

Application
Masonry wall reinforced mesh is widely used in the building construction area, normally used in the wall reinforcement.
