Ligatures - for Reinforcing Footing Beams

Packaging
N/A
Delivery
15 Days

Different Shape Ligatures for Concrete Reinforcement

As is known to us all, any construction is starting with a strong base. Ligatures make it easier to form a solid foundation. Made from round reinforcing bars which may be plain or ribbed, ligatures are commonly manufactured in the shape of square and rectangular. Other shapes are also available in our company.

Ligatures, also called stirrups, are mainly used to be tied to top and bottom of trench meshes or reinforcing rods, which can form a cage or column to enhance the compressive strength of concrete footings and beams.

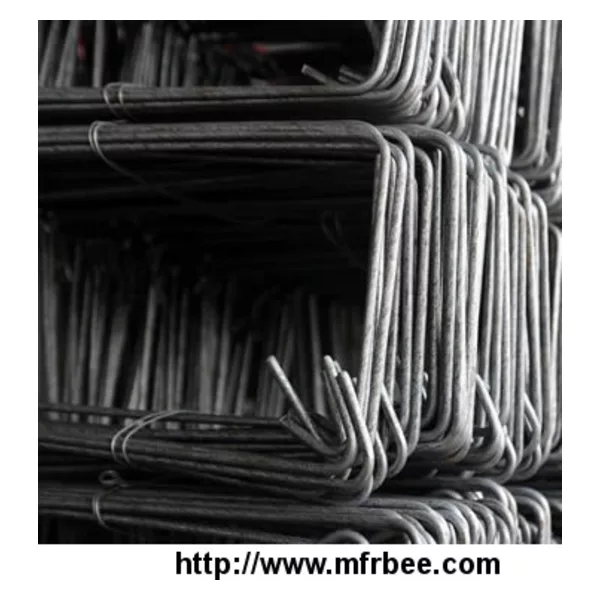

Many square ligatures bundles together
Many ligatures with square shape
Closed loop ligatures with different shapes
Ligatures can be made closed loop for different needs
Open and closed loop ligatures schematic diagram
Schematic diagram of ligatures with different loops
Pentagonal, square, round and triangle ligatures
Ligatures with other shapes: pentagonal, square, round and triangle

Our ligatures are usually made in different length and width, with three common diameters (5.6mm, 6mm, 10mm). Common sizes are as below. If there is no suitable size for your construction, you can also make an order as you required.

Specification of square and rectangular ligatures
Items Dimensions (mm) Pack quantity Items Dimensions (mm) Pack quantity
L1020 100 × 200 25 L2540 250 × 400 25
L1030 100 × 300 25 L2550 250 × 500 25
L1040 100 × 400 25 L3030 300 × 300 25
L1050 100 × 500 25 L3035 300 × 350 25
L1520 150 × 200 25 L3040 300 × 400 25
L1530 150 × 300 25 L3050 300 × 500 25
L1540 150 × 400 25 L3520 350 × 200 25
L1550 150 × 500 25 L3530 350 × 300 25
L2020 200 × 200 25 L3540 350 × 400 25
L2030 200 × 300 25 L3550 350 × 500 25
L2040 200 × 400 25 L4030 400 × 300 25
L2045 200 × 450 25 L4040 400 × 400 25
L2050 200 × 500 25 L4045 400 × 450 25
L2520 250 × 200 25 L4050 400 × 500 25
L2530 250 × 300 25 L4550 450 × 500 25

Note: specifications of other shapes ligatures can be ordered by your requirement.

Many ligatures applied in construction forming a rigid cage
Ligatures are used with rebars to form a rigid column

Features

  • Easy to transport.
  • Different shapes for any construction need.
  • Great acid and alkali resistance for long serving life.

Applications
Ligatures are often used in concrete footings and beams. Ligatures are tied with reinforcing bars to form a rigid cage or column, which make the whole foundation solid and reduce cracking of concrete beams surface.

Packing
Usually 25 per bundle, boxed packing or as you required.

Many plain ligatures bundled up by tie wires
Many bundles of plain ligatures tied by steel wires
Many ligatures piled up together
Manufactured ligatures piled up outside the warehouse
