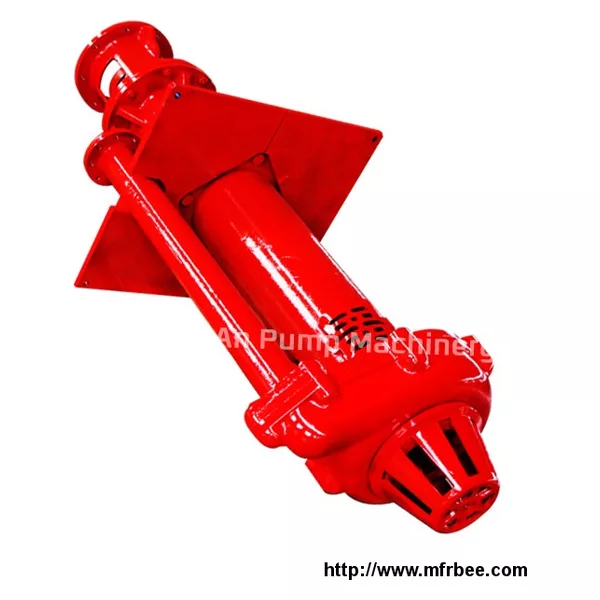

Vertical Sump pump

Packaging: N/A

Delivery: 15 Days

General

The BP series pump is single stage, vertical cantilever, single and double suction pump. Liquid ends construction is the same white iron as in the other models. Bearing are grease lucricated.

The BPR is constructed similar to BP, except all the parts in contact with the pumpage are rubber coated, The rubber coating is used for corrosive applications.

Applications

This pump is suitable for metallurgy, mining, coal, power plants, building materials and general industrial applications that convey abrasive and high-concentration slurry. This pump has been used very successfully for ash removal in power plants.

Structure

1. Material construction optional

BP: abrasion resisting metal construction

BPR: anti-corrosive rubber construction

2. Do not need any shaft seal or sealing water. Also worked well under insufficient suction duty.

3. The type with “L” is the pump with extension shaft. It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.

4. The agitator is available

We can assembly the agitator as requirements.

Performance

Type Material Flow

(m3/h) Head

(m) Max Power (kw) Speed (rpm)

40C-BP/R Metal/Rubber 7.2-39.6 3.9-27.4 15 1000-2200

65D-BP/R Metal/Rubber 19.08-102.6 5-31.1 30 700-1500

100E-BP/R Metal/Rubber 41.5-259.2 5.1-37.2 70 500-1200

150F-BP/R Metal/Rubber 115.2-576 6.7-35.7 110 500-1000

200F-BP/R Metal/Rubber 180-734.4 7.1-28.2 110 400-850

250S-BP/R Metal/Rubber 363-1188 7-36 200 400-750

300S-BP/R Metal/Rubber 385-1492 7.8-55 250 400-700
