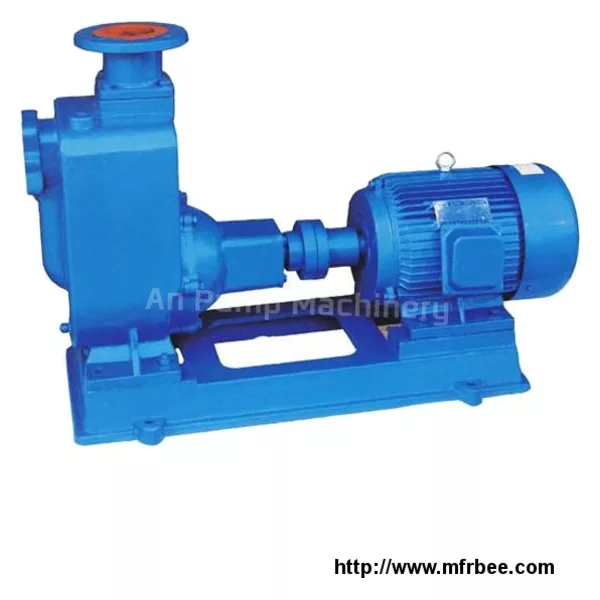

Self Priming Pump

General

Our AZX Series Self-Priming Pump is kind of energy-saving pump, developed by us after studying relevant technical data both domestic and abroad, and also making much improvement. The SZ series self-priming centrifugal pump, featured by a compacted structure, easy and stable operation, easy maintenance, high efficiency, long life, strong self-priming capacity etc.

Application

--- Applicable for urban environment, construction, fire control, chemical industry, pharmacy, dye, brewage, power electricity, plating, paper making, washing of industrial mines, cooling of equipments, etc.

--- Applicable for clean water, sea water, liquid chemical media with a centain degree of acidity and alkalinity and generally past rerum

Operating Conditions

Ambient tempetature: ≤ 40 ℃ ; medium temperature: -10 – 80 ℃ ; ≤ 120 ℃ (hot water type)

Structural

1 coupling 2 shaft 3 bearing 4 Mechanical seal 5 Bearing body

6 Pump casing 7 Outlet base 8 Inlet base 9 Front seal ring 10 impeller

11 Rear cover 12 Water deflector 13 Filling port 14 Liquid return port

AZX Self-Priming Pump Performance Parameters

Pump Model Capacity

(m3/h) Head

(m) Suction Height

(m) Speed

(rpm)

40AZX 1-6.4 20-40 6.5 2900

50 AZX 1-10 25-42 6.5 2900

65 AZX 25-30 15-32 6 2900

80 AZX 35-60 13-70 6 2900

100 AZX 70-100 20-75 6 2900

150 AZX 170 55-65 5 2900

200 AZX 280-400 32-65 5 1450

250 AZX 400-550 32-75 5 1450

300 AZX 400-600 32-75 5 1450
