Description

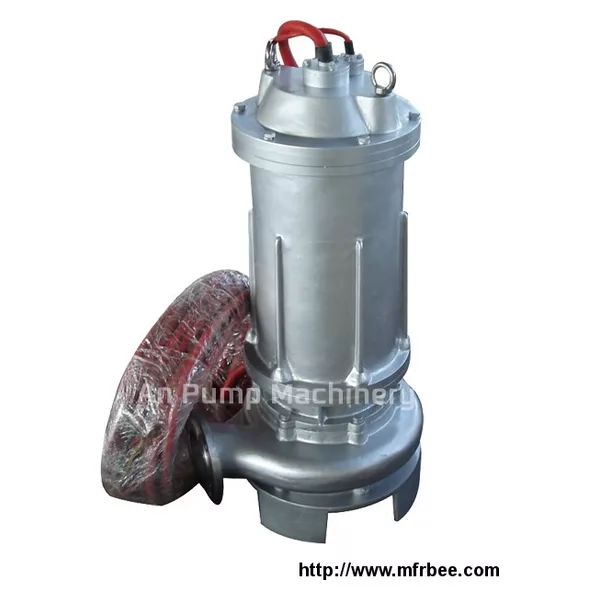

ASW series submersible sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc. Trades to drain off the sewage, waste water, rainwater
and living water in cities containing solid grains and various long fabrics
ASW pump is high efficiency, energy saving, non-blocking, anti-winding, long life and other notable features can be installed with automatic coupling device. And a common type, auto-mixing type,
auto-shredding type, auto-mixing chopped and anti-flushing type five kinds of models.
Structure
Bearing:
Imported SKF of NTN bearing, which, with a reasonable configuration, can oxtend the duration of the pump.
Cooling:
The buit-in cooling system can have the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from
the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the
cooling system.
Motor:
Of F class insulation, max. working temperatures 155 C, and of a protective grade IPX8 with the effective seal.
Mechanical seal:
Use high quality mechanic seal , two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
Oil chamber:
Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor.
Impeller:
With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every
point of working condition.
Pump casing:
Use the know-how of CAD/CAM to make it of max. efficiency and min wearability
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft preven ts against contacting with the medium to protect is from corrosion.
Performance
No Pump Model Outlet Dia
(mm) Flow Rate
(m3/hr) Head
(m) Power
(kw)
1 50ASW 50 5-40 7-38 0.75-7.5
2 65ASW 65 10-45 8-37 2.2-7.5
3 80ASW 80 40-75 6-28 2.2-7.5
4 100ASW 100 65-120 4-45 3-22
5 150ASW 150 80-200 5-62 5.5-55
6 200ASW 200 250-500 6-50 11-75
7 250ASW 250 300-800 5-53 15-132
8 300ASW 300 500-1400 5-38 18.5-132
9 350ASW 350 900-2600 5-50 30-355
10 400ASW 400 1200-2800 3-47 30-355
11 500ASW 500 1500-4000 4-32 55-250
12 600ASW 600 2500-6000 6-25 110-315
