Fax Paper ,Pos Paper ,Atm Paper Slitting Machine

Product Quick Detail

Packaging
Usually a wooden pallet packaging ,in details can according to the machine type and transport demand.
Delivery
30 Days

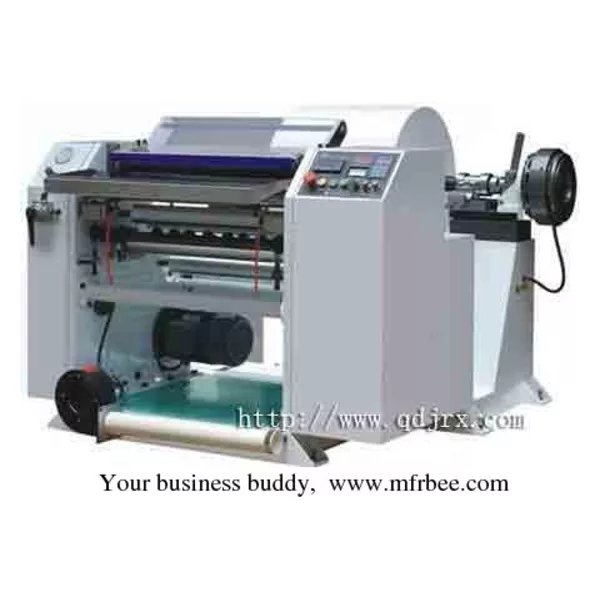

JRX900-1100A Automatic Thermal Paper Slitting &Rewinding Machine.

Features:
1. The machine can reach the high quality request of slitting and rewinding fax paper, cash register paper(single layer or double layer), thermal paper, ATM paper, Pos paper, facsimile paper and cardiogram printing paper, computer printing paper, taxi ticket, and commercial bill and so on.
2. The machine adopts frequency adjustable motor. So its speed can be adjusted progressively.
3. The reeling unit is three-roller holding surface central coiling system, with a pneumatic controller. It is equipped with a pneumatic paper inserter. So the slitting paper and the paper pipe are unnecessarily stuck.
4. The slitter adopts spherical blades. The down spherical blade shaft is a combination of the bottom blade and blade pad(it is combined according to the slitting width specification). The position of the upper spherical blade can be adjusted according to the edge position of the down spherical blade.

Delivery time: With in 30 days after received your 30%deposit and the balance should be paid before shipment
Guarantee time: One year
And in the period, we shall provide vulnerable parts freely, out of the time if you need any parts; We shall provide you with cost.

Main Technical Parameters:

Model : JRX900-1100A
Max width of material : 900-1100mm
Max unwind diameter : 900mm
Max rewind diameter : 250mm
Slitting width : 50mm,210mm,216mm,257mm
Inner diameter of unwind : 76inch
Inner diameter of rewind : 0.5 or 1 inch
Speed : 0-150m/min
Precision : ±0.2mm
Power : 7.5kw
Overall dimension(L*W*H) : 3000*1900*1500mm
Weight : 2500kgs
