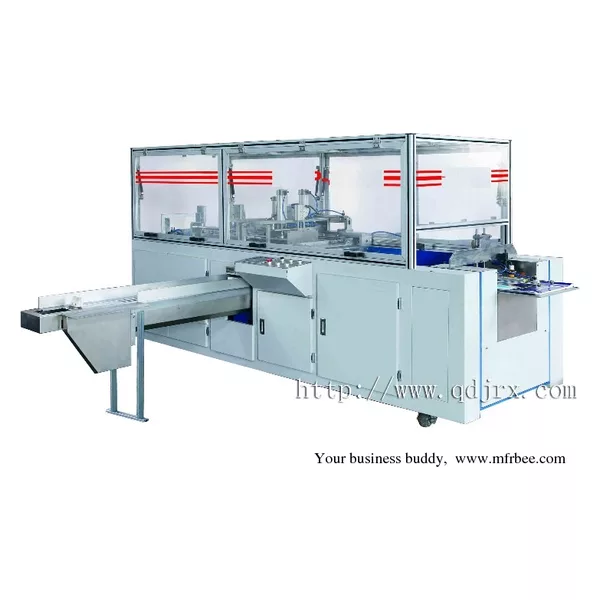

Description of JRXDA-A4 Copy Paper Wrapping Machine:
1. This kind of A4 paper sheet packaging machine, Is a special type of packaging machine based on the company production of three-dimensional packing machine in many years of independent
innovation and design, its working principle: Through the machine a series of internal transmission of the mechanical structure and matched with a pneumatic device and realize the whole process
of packaging
2. Each connecting rod, transversely paper feeding function and other sections are driven by a series of cams inside the machine to quickly complete the actions of automatic paper feeding, paper
falling, gluing and wrapping etc.
Features and Structure:
1) Multi-functional converter controlled speed regulation by PLC.
2) Man-machine interface touch screen for easy operation.
3) Automatic feeding paper ream.
4) The machine can be used to pack common and printed sheets.
5) Automatic hotmelt glue spraying system.
6) Packaging costs can be greatly reduced, and labour saving.
Main Technical Parameter:
Model | JRXDA-A4 |
Productive capacity | 18-20(Pcs/min) |
Functions whereby roll overwrap paper can be automatically cross cut and fed |
18-20(Sheets/min) |
Specification of packed object (based on 500 pieces of copying paper) |
210× 297× 50mm |
Power supply | 380V Three-phase four-wire |
Motor power | 5.1kw |
Gluing power | 3.7kw |
Compressed air | 0.6mpa |
Paper size(Lenght× Width) | 550-560mm× 386mm |
Overall dimension | 4800× 3050× 1450mm |
Weight | 1.5T |
