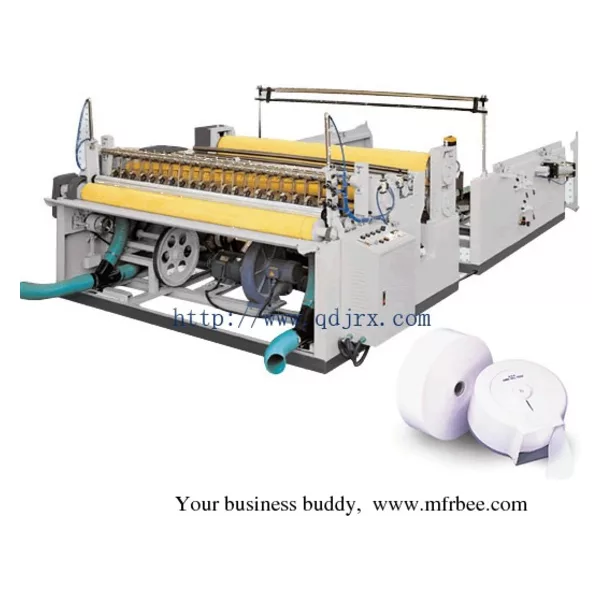

Jumbo Toilet Paper Roll Slitter and Rewinder
Product Quick Detail
- Packaging
- Usually a wooden pallet packaging ,in details can according to the machine type and transport demand.
- Delivery
- 30 Days
Specifications
JRXT 001 Series toilet paper rolls slitting & rewinding machine characterized by the production of small perforated paper and roll toilet paper functions, rolling and cutting at the same time.
Possess reasonable structure, strong rolling, incision formation, the first choice of produce high-quality samll paper roll.
Main features:
1, * Gas-axis winding, precise paper tube positioning, after slitting rewinding paper rolls separation easier.
2, * Horizontal unwinder, wide belt pneumatic feed, each paper has its own axis tension adjustment device.
3, * Side pressing. Independent pneumatic pressure wheels, high hardness bottom roller embossed. Both sides embossed, each paper no spread, more beauty.
4, *. Sealing edge, trimming, spray, sealing synchronization, without loss, thereby enhancing the level of finished products and finished products leave the end of paper to facilitate the
opening.
Main Technical Parameters:
| Model | JRXT-1350 | JRXT-1750 | JRXT-2000 | JRXT-2400 | JRXT-2700 |
| Max width of material | 1350mm | 1750mm | 2000mm | 2400mm | 2700mm |
| Max unwind diameter | Φ1100mm(other size can be ordered) | ||||
| Inner diameter of material | Φ76.2mm(other size can be ordered) | ||||
| Diameter of rewind | Φ90mm-Φ350mm(other size can be ordered) | ||||
| Inner diameter of rewind | Φ76.2mm(other size can be ordered) | ||||
| Rewind | Gas expansion shaft | ||||
| Embossment unit | Single embossment, double embossment, steel to steel embossment | ||||
| Bottom embossing roller | Felt roller, wool roller, rubber roller | ||||
| Max speed | 180 m/minute | ||||
| Punching | Spiral 2 pcs punching knife | ||||
| Motor | 3KW-15KW | ||||
| Unwinder | 1-3 layers ( to be ordered ) |
you can try toilet paper to get through more products
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas
- Founded Year:2003
- Address:Room 12-B, Jindu Garden B Building, No.37 Donghai West Road
- Contact:Sarah Han
