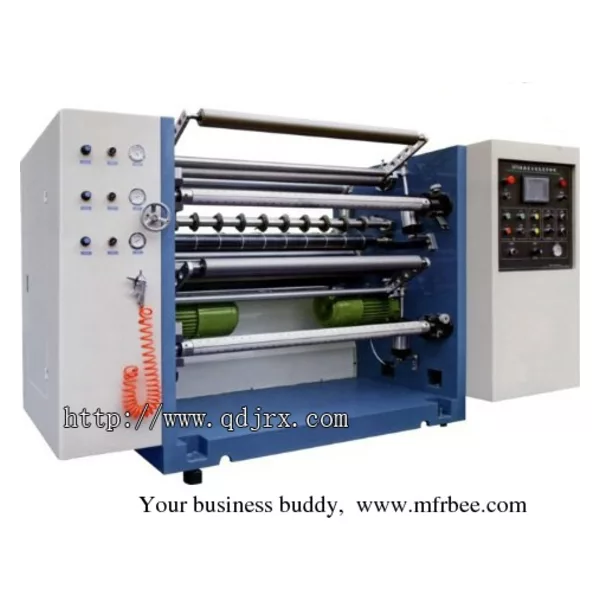

Automatically Paper Slitting and Rewinding Machine
Product Quick Detail
- Packaging
- Usually a wooden pallet packaging ,in details can according to the machine type and transport demand.
- Delivery
- 30 Days
Specifications
JRX1300-A Automatically Paper, Film Slitting & Rewinding Machine.
Intruction:
1). The machine is mainly to cut paper, carbonless paper, laminated film, aluminum foil, packing material, etc.
2). Entire machine is controlled by PLC (two vector motors), man-machine interface, screen touch operation.
3). Unwinding part adopts the import magnetic powder brake, realizes by the PLC automatic counting, as well as consistant tension control for unwinding.
4). Transmission part uses the vector frequency conversion motor, realize the constant line speed control.
5). Unwinding part is shaftless, adopt air cylinder equipment, vice-clamps electrically operated by the lead screw to adjust.
6). Rewinding part uses the vector frequency conversion motor, to drice magnetic powder cluth, realized by the PLC automatic diameter counting, auto tensity control.
7). Auto meter presetting, auto meter counting, auto stoppage, etc.
8). EPC error correction device is positive to assure the accuracy.
Main Technical Parameters:
| Model | JRX1300-A |
| Max unwinding width | 1300mm |
| Max. unwinding diameter | 1000mm |
| Max.rewinding diameter | 600mm |
| Speed of machine | 0-300m/min |
| Total Power | 10kw |
| Overall dimensions | (LxWxH) 1800*2800*1600mm |
| Machine Weight | 2800kgs |
