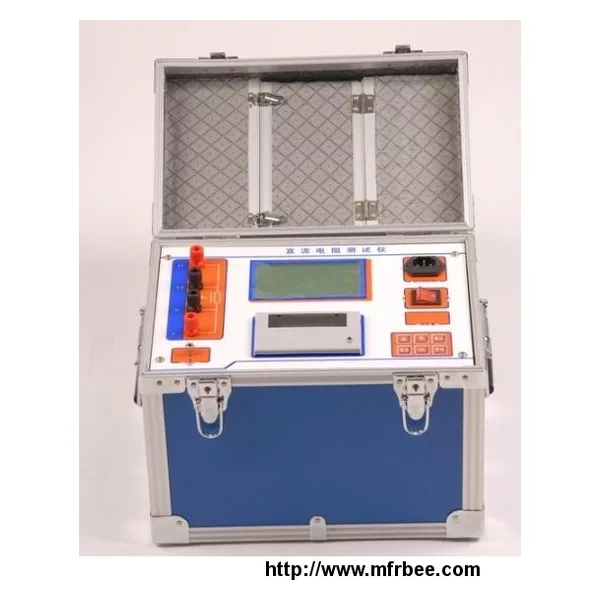

GDZC Transformer Winding Resistance Tester

Place Of Origin
China
Packaging
Standard wooden case and carton according to customer's requirement
Delivery
15 Working Days
General Introduction
GDZC transformer winding resistance tester uses constant current source to measure the DC resistance of inductance circuit such as power transformer coil , current transformer coil and so on. GDZC transformer winding resistance tester has functions of self test, data processing, discharge rapidly, result print and so on.
Functions of GDZC Transformer Winding Resistance Tester
♦ A new switching power supply technology makes output current more stable and power larger than before.
The tester has an advanced signal process circuit which has a good performance at anti-noise. Test data is precise and stable.
♦ The tester has protections to prevent circuit over-current, circuit over-voltage, wrong operation, discharge and so on.
♦ Small size, light weight and more suitable for outdoor using.
Varies levels of output current make measuring range more wide.
♦ Large-screen LCD makes operation easy.
Main Technique Index of GDZC Transformer Winding Resistance Tester

v Test current:

a. GDZC-2 max test current 2A

b. GDZC-10 max test current 10A

c. GDZC-20 max test current 20A

d. GDZC-40 max test current 40A

e. GDZC-100 max test current 100A

f. GDZC-20S max test current 20A Three channels measurement at the same time

v Maximum measurement error: 0.2%RDG+2D

v LCD display

v Maximum voltage out for all series: 20V

v Resolution: 1μΩ (for all series)

v Measuring range:

a. 1μΩ~4.5kohm( GDZC-2)

b. 1μΩ~20ohm( GDZC-10)

c. 1μΩ~10ohm( GDZC-20)

d. 1μΩ~10ohm( GDZC-40)

v Rated power supply: AC220V±10%% 50Hz/60Hz

Temperature : -10°C~+40°C RH≤85%
