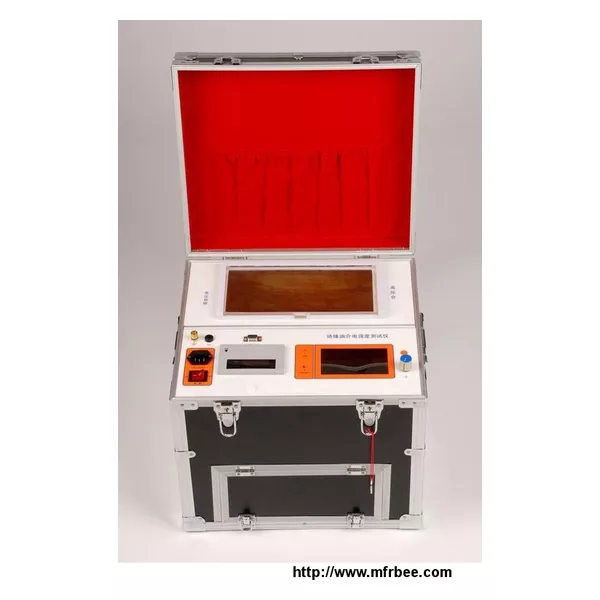

GDYJ-501 Digital Display Oil BDV Test Set
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Standard wooden case and carton according to customer's requirement
- Delivery
- 15 Working Days
Specifications
Digital Display Oil BDV Test Set Functions
♦ Breakdown test of user-defined
♦ Proof test
♦ Calibration interface for customers
♦ Unloading data to PC and making word report
automatically.
♦ Result print
Digital Display Oil BDV Test Set Characteristics
♦ Lcd display the test procedure and test result.
♦ All the human interaction operations is completed through the rotating mouse.
♦ Easy for customers to measure the breakdown voltage of all kinds of oil.
♦ Built-in micro printer which can print the test result.
♦ Rs232 allowed pc connecting work.
♦ Good performance at stability an anti-noise.
Digital Display Oil BDV Test Set Technical Parameter
| No | Name | Parameter |
| 1 | Rated Power Supply | AC 220V±10% 50/60Hz |
| 2 | Output Voltage | AC 0~80KV/AC 0~100KV |
| 3 | Rate of Voltage Rise | 2KV/s±10% |
| 4 | Measuring Precision | Grade 3 |
| 5 | Times | 1~9 times |
| 6 | Mixing Time | 0~99 seconds |
| 7 | Placing Time | 0~9mins and 59 senconds |
| 8 | Data Storage | 100 groups |
| 9 | Voltage Limit Setting for proof test | 20KV~70KV |
| 10 | Hold time for proof test | 1~10mins |
| 11 | Working Temperature | 5~40°c |
| 12 | Relative Humidity | ≤80% RH |
| 13 | Dimension | 420×380×410mm |
| 14 | Net Weight | 28 kg |
