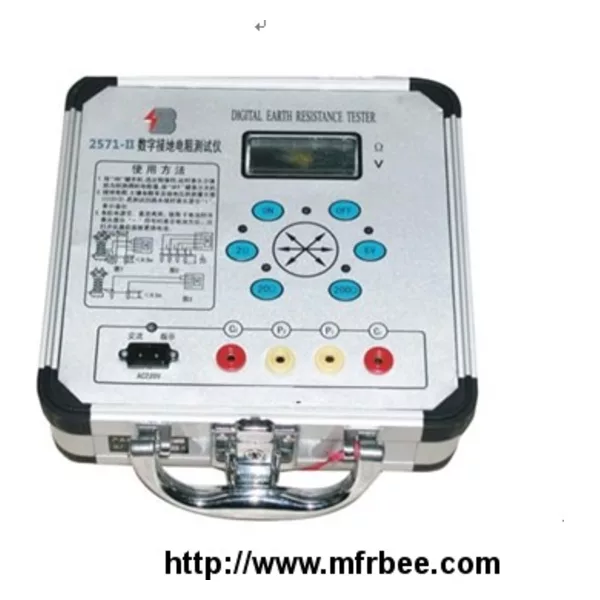

GD2571-II Digital Soil Resistance Tester

The GD2571-II Digital Soil Resistance Tester /Portable Digital Soil Resistance Tester is applied to measure the earth resistance of equipments and conductive and resistance low resistance circuit in power system.

Technical parameters of GD-2571-II Digital Soil resistance Tester :

1 Measurement range and error
0~1.999ohm <3%RDG+1D Resolution: 0.001ohm
2~19.99ohm <1.5%RDG+1D Resolution: 0.01ohm
20~199.9ohm <1.5%RDG+1D Resolution: 0.1ohm

2 Test Current
0~19.99ohm 10mA
20~199.9ohm 1mA

3 Test voltage: 0~20V

4 Power supply: Battery

5 Environment temperature: 0-50° C

6 Humidity: ≤ 85%RH

7 Size: 200mm´ 200mm´ 110mm

8 Weight: <2.5kg
