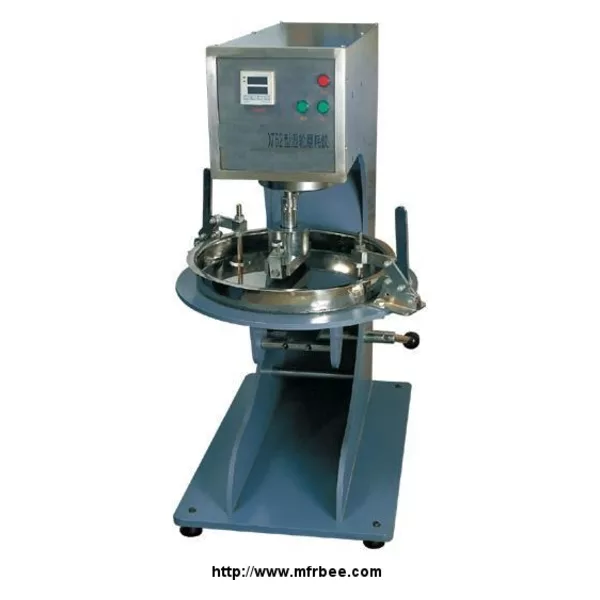

GD-0752 Asphalt Wet Wheel Abrasion Loss Tester

Place Of Origin
China
Packaging
Standard wooden case and carton
Delivery
15 Days
Detail Information
Ⅰ. Introduction

GD-0752 Bitumen/Asphalt Wet Wheel Abrasion Loss Tester is designed and made as per T0752 Emulsified Asphalt Slurry Seal Mixture Wet Wheel Abrasion Loss Test in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

The bitumen/asphalt wet wheel abrasion loss tester is suitable to determine resistance to abrasion loss of shaped emulsified asphalt slurry seal mixture.

GD-0725 bitumen/asphalt wet wheel abrasion loss tester is used to decide the preferred asphalt content in the slurry seal mixture together with loading wheel rolling tester.

Ⅱ. Technical Parameter
No. Description Parameter
1 Power Supply AC 220 V 50 Hz
2 Motor Rotation Speed 1400 RPM
3 Power Consumption 0.38 Kw(at most)
4 Grinding Head Rotation Speed 140 RPM
5 Grinding Head Revoluation Speed 61 RPM
6 Grinding Head Weight 2.27 kg (working weight)
7 Grinding Head Rubber Tube Lenth 127 mm
8 Timing performance 5 minutes
9 Dimension 600×480×845 mm
10 Weight 260 KG
