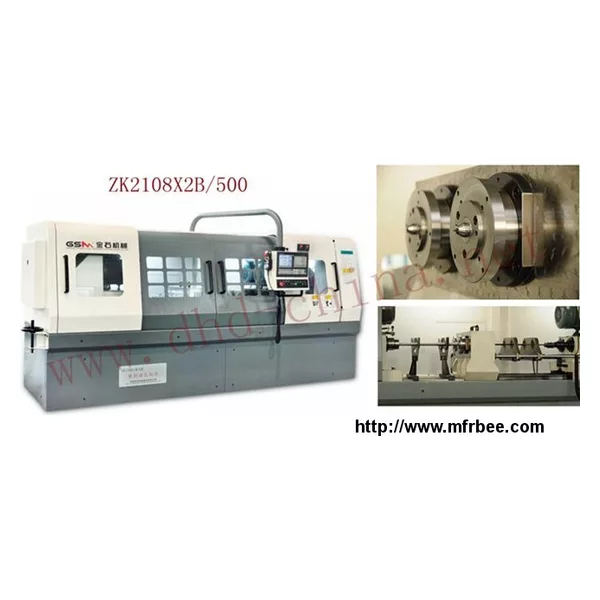

ZK2108X2B/500 Dual-axis Gun drilling Machine Tool

Packaging
wooden case
Delivery
six months

Overview:

Processing Method: outside chip removing; gun drill

Hole Diameter(mm): Φ1.5~Φ8

Hole Depth(mm): 500 (Draw Ratio≤100)

NC System: GSK980TDC / FANUC OI Mate TC

Drill Pipe: high speed mechanical spindle; frequency control; simultaneously rotating and

feeding

Workpiece: constant speed rotation

Guide Sleeve: axial restraint

Workpiece Clamping: based on the top of tail and cone disc of guide sleeve, to accurately

orientate workpiece by chamfer of the two sides;

pneumatic stretch out and draw back to fasten the workpiece.

Parameter:

Processing Ability:

1. Number of Spindle(pcs): 2

2. Hole Diameter(mm): Φ1.5~Φ8

3. Hole Depth(mm): ≤500

4. Diameter Range of Workpiece(mm): ≤Φ50

5. Length Range of Workpiece(mm): ≤500

Processing Speed:

1. Max Rotation Speed of Drill Pipe’s Spindle (r/min): 15000

2. Workpiece Rotation Speed(r/min): 500 (fixed)

3. Feeding Speed Range(mm/min): ≤1500

4. Forward Speed(mm/min): ≤2000

Processing Accuracy:

1. Hole Skewness: ≤0.5/1000 (workpiece rotating)

≤1.0/1000(workpiece fixed)

2. Dimensional Accuracy of Drill Pipe: IT7~IT11

3. Hole Rugosity: Ra0.4~Ra1.6

Power of Machine

1. Drill Pipe Motor Power(kw): 2X1.1

2. Workpiece Rotating Power(kw): 2X1.1

3. Oil Pump Power(kw): 2X4.0

4. Feeding Power(kw): 1.8

5. Power of Oil-temp Cooling Machine(kw): 2.8

Hydraulic System

1. Max Volume of Flow(L/min): 2X20 (dual-axis)

2. Max Pressure(Mp): 16

3. Filtering Accuracy(um): 10

4. Oil Storage Capacity(L): 960

Basic Dimension & Weight

1. Dimension (mm): 4500*3000*1500(L*W*H)

2. Height between Drill Pipe Centre and Ground(mm): 1070

3. Height between Drill Pipe Centre and Guide(mm): 297.0

4. Distance between Axles(mm): 220

5. Weight of Main Engine(kg): 5000
