Description of Specification
|
Configuration
|
Units
|
Model
|
Model
|
|

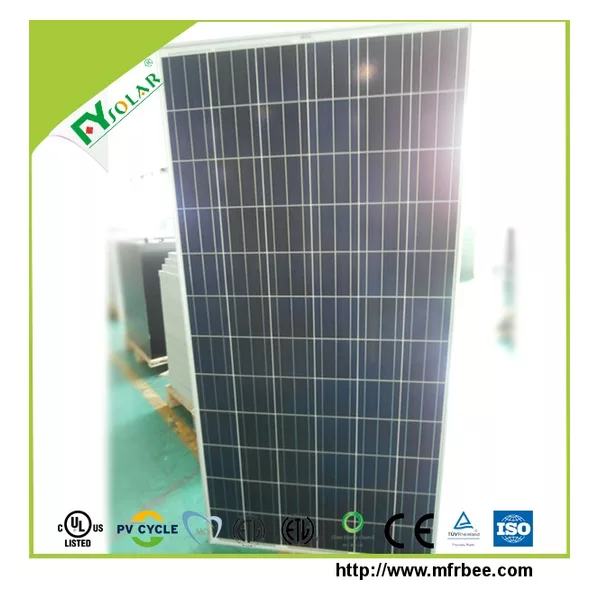

FY-72-300P
|
|
|
General Data
|
|
Nominal Power
|
|
Watts
|
300W
|
|
|
Application
|
|
|
|
|
|
Surface Maximum Load Capacity
|
|
kg/m2
|
200
|
|
|
Storage & Operating Temperature
|
|
Deg C
|
-40 to +80
|
|
|
Standard Test Conditions
|
|
|
|
|
|
|
Cell Temperature
|
|
Deg C
|
25
|
|
|
|
Irradiance
|
|
kW/m2
|
1
|
|
|
|
Air Mass
|
|
|
1.5
|
|
|
Solar Cell
|
|
Cell Type
|
|
|
Poly
|
|
|
Wafer Diameter
|
|
mm2
|
156x156
|
|
|
Number of cells
|
In Series
|
|
72 ( 6x12 )
|
|
|
Maximum Power
|
|
Watts
|
300W
|
|
|
Watt Tolerance
|
|
%
|
+/- 3
|
|
|
Module Conversion Efficiency
|
|
%
|
15.5
|
|
|
Encapsulated Solar Cell Efficiency
|
|
%
|
17.5
|
|
|
Voltage & Ampereage
|
|
Maximum System Voltage
|
|
Volts
|
1000
|
|
|
Maximum Operating Voltage
|
Vmp
|
Volts
|
37.8
|
|
|
Maximum Operating Current
|
Imp
|
Amps
|
7.94
|
|
|
Open Circuit Voltage
|
Voc
|
Volts
|
43.6
|
|
|
Short Circuit Current
|
Isc
|
Amps
|
9.55
|
|
|
Operational Temperatures
|
|
Temp Coefficent of Isc
|
TK Isc
|
% per deg.C
|
0.05
|
|
|
Temp Coefficent of Vm
|
Tk Vm
|
% per deg.C
|
-0.38
|
|
|
Temp Coefficent of Voc
|
TK Voc
|
% per deg.C
|
-0.38
|
|
|
Temp Coefficient of Pmax
|
TK Pmax
|
% per deg.C
|
-0.5
|
|
|
Normal Op. Cell Temp (NOCT)
|
Mean
|
deg.C
|
48 +/- 2
|
|
|
Materials & Accessories Data (All Certified by CE and TUV)
|
|
Series Fuse Rating
|
|
Amps
|
11
|
|
|
Junction Box Type
|
|
|
GZX0701
|
|
|
Frame (Metal)
|
Aluminum
|
Anodized
|
yes
|
|
|
Connectors
|
|
|
IP65
|
|
|
Cable
|
|
|
|
|
|
|
Length
|
|
Meters
|
0.9
|
|
|
|
Wire Diameter
|
|
mm2
|
0.4 square mm
|
|
|
Glass
|
|
|
|
|
|
|
Thickness
|
|
mm
|
3.2
|
|
|
|
Low Iron
|
|
|
yes
|
|
|
|
High Transmisson
|
|
|
yes
|
|
|
|
Toughness
|
|
|
yes
|
|
|
EVA resin
|
|
mm
|
0.5mm
|
|
|
Backsheet
|
|
|
|
|
|
|
Material
|
TPT
|
mm
|
0.3mm
|
|
|
Warranty (Output)
|
|
|
|
|
|
|
10 years
|
|
%
|
90
|
|
|
|
20 - 25 years
|
|
%
|
80
|
|
|
|
Whole Panel
|
|
Years
|
10 years
|
|
|
Dimensions, Packing & Loading
|
|
Dimensions
|
|
|
|
|
|
|
Length
|
|
mm
|
1956
|
|
|
|
Width
|
|
mm
|
992
|
|
|
|
Height
|
|
mm
|
50
|
|
|
Weight
|
|
kg
|
30
|
|
