Solar Panel Data Sheet
|
|
Description of Specification
|
Configuration
|
Units
|

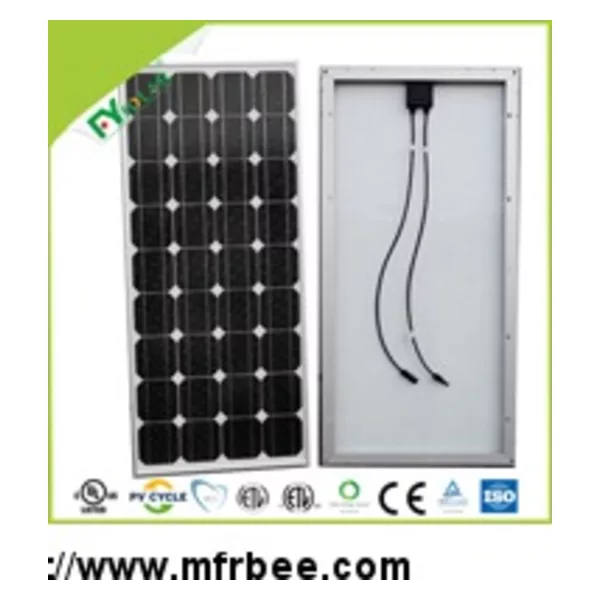

Model
|
|
FY-36-100M
|
|
General Data
|
|
Nominal Power
|
|
Watts
|
100W
|
|
Application
|
|
|
DC12V system
|
|
Surface Maximum Load Capacity
|
|
kg/m2
|
200
|
|
Storage & Operating Temperature
|
|
Deg C
|
-40 to +80
|
|
Standard Test Conditions
|
|
|
|
|
|
Cell Temperature
|
|
Deg C
|
25
|
|
|
Irradiance
|
|
kW/m2
|
1
|
|
|
Air Mass
|
|
|
1.5
|
|
Solar Cell
|
|
Cell Type
|
|
|
Mono
|
|
Wafer Diameter
|
|
mm2
|
125*125
|
|
Number of cells
|
In Series
|
|
36 ( 4x9 )
|
|
Maximum Power
|
|
Watts
|
100W
|
|
Watt Tolerance
|
|
%
|
+/- 3
|
|
Voltage & Ampereage
|
|
Maximum System Voltage
|
|
Volts
|
1000
|
|
Maximum Operating Voltage
|
Vmp
|
Volts
|
18.7
|
|
Maximum Operating Current
|
Imp
|
Amps
|
5.35
|
|
Open Circuit Voltage
|
Voc
|
Volts
|
22.6
|
|
Short Circuit Current
|
Isc
|
Amps
|
5.65
|
|
Operational Temperatures
|
|
Temp Coefficent of Isc
|
TK Isc
|
% per deg.C
|
+0.1
|
|
Temp Coefficent of Voc
|
TK Voc
|
% per deg.C
|
-0.38
|
|
Temp Coefficient of Pmax
|
TK Pmax
|
% per deg.C
|
-0.47
|
|
Temp Coefficent of Vm
|
TK Vm
|
% per deg.C
|
-0.38
|
|
Temperature coefficients of lm
|
TK Im
|
% per deg.C
|
+0.1
|
|
Normal Op. Cell Temp (NOCT)
|
|
deg.C
|
48 +/- 2
|
|
Materials & Accessories Data (All Certified by CE and TUV)
|
|
Series Fuse Rating
|
|
Amps
|
11
|
|
Junction Box Type
|
|
|
GZX
|
|
Frame (Metal)
|
Aluminum
|
Anodized
|
yes
|
|
Connectors
|
|
|
IP65
|
|
Cable
|
|
|
|
|
|
Length
|
|
Meters
|
0.9
|
|
|
Wire Diameter
|
|
mm2
|
0.4 square mm
|
|
Glass
|
|
|
|
|
|
Thickness
|
|
mm
|
3.2
|
|
|
Low Iron
|
|
|
yes
|
|
|
High Transmisson
|
|
|
yes
|
|
|
Toughness
|
|
|
yes
|
|
EVA resin
|
|
mm
|
0.5mm
|
|
Backsheet
|
|
|
|
|
|
Material
|
TPT
|
mm
|
0.3mm
|
|
Warranty (Output)
|
|
|
|
|
|
10 years
|
|
%
|
90
|
|
|
20 - 25 years
|
|
%
|
80
|
|
|
Whole Panel
|
|
Years
|
5 years
|
|
Dimensions
|
|
Dimensions
|
|
|
|
|
|
Length
|
|
mm
|
1200
|
|
|
Width
|
|
mm
|
540
|
|
|
Height
|
|
mm
|
35
|
|
Weight
|
|
kg
|
10
|
