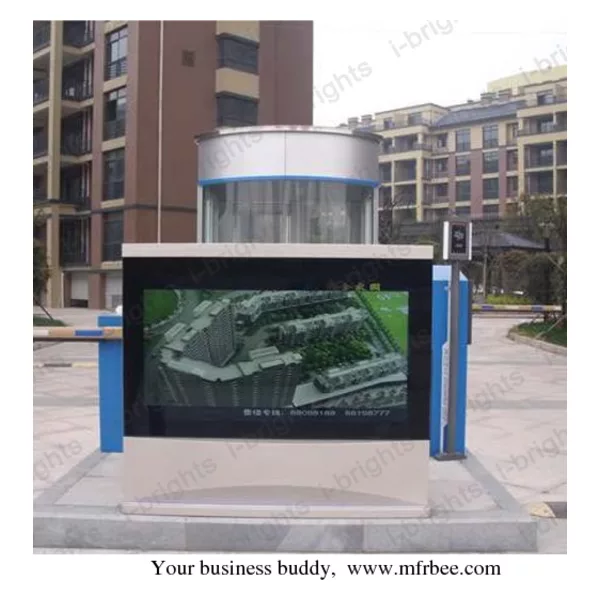

Outdoor LCD Display
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Wooden box
- Delivery
- 30 Days
Specifications
| Model No. | YT4200L | YT4200P | YT4600L | YT4600P-S | YT4600P-B |
| LCD Panel Size | 42'' | 42'' | 46'' | 46'' | 46'' |
| Panel Brand | LG | LG | SAMSUNG | SAMSUNG | SAMSUNG |
| Aspect Ratio | 16:9 | 9:16 | 16:9 | 09:16 | 09:16 |
| Backlight Technology | LED | LED | LED | LED | LED |
| LCD Panel Technology | IPS | IPS | PVA | PVA | PVA |
|
Display Colours |
16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Display Size | 930.2×523.2mm | 930.2×523.2mm | 1018.3×572.5mm | 1018.3×572.5mm | 1018*573mm |
| Resolution | 1920×1080 | 1920×1080 | 1366×768 | 1366×768 | 1366×768 |
| Pixel Pitch | 0.4865×0.4865mm | 0.4865×0.4865mm | 0.7455×0.7455 mm | 0.7455×0.7455 mm | 0.7455×0.7455 mm |
| Brightness | 1500cd/m2 | 1500cd/m2 | 1500cd/m2 | 1500cd/m2 | 1500cd/m2 |
| Contrast Ratio | 1200:1 | 1200:1 | 1500:1 | 1500:1 | 1500:1 |
| Viewing Angle | 178° | 178° | 178° | 178° | 178° |
|
Response Time |
8ms | 8ms | 8ms | 8ms | 8ms |
| Brightness Control | Automatic control | Automatic control | Automatic control | Automatic control | Automatic control |
| Backlight Life | 50000 Hours | 50000 Hours | 50000 Hours | 50000 Hours | 50000 Hours |
| Installation Method | Floor standing | Floor standing | Floor standing | Embeded mounting | Wall mounting |
|
Dimension of Overall Unit |
1100*550*230mm | 1250*700*230mm | 1200*870*260mm | 1750*780*230mm | 1078*632*300mm |
| Material of Housing |
Steel with painting or alumimium with painting (alternative) |
Steel with painting or alumimium with painting (alternative) |
Steel with painting or alumimium with painting (alternative) |
Steel with painting or alumimium with painting (alternative) |
Steel with painting or alumimium with painting (alternative) |
| Exterior Colours | Silver or customized color | Silver or customized color | Silver or customized color | Silver or customized color | Silver or customized color |
| Protection Rating |
IP55 (Fan cooling) IP65(Air conditioner cooling ) |
IP55 (Fan cooling) IP65(Air conditioner cooling ) |
IP55 (Fan cooling) IP65(Air conditioner cooling ) |
IP55 (Fan cooling) IP65(Air conditioner cooling ) |
IP55 (Fan cooling) IP65(Air conditioner cooling ) |
| Weight | 90kg | 90kg | 96kg | 85kg | 85 kg |
|
Computer Serial Input |
RS-232 | RS-232 | RS-232 | RS-232 | RS-232 |
| Network cable port | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 |
| DVI Input | One DVI input | One DVI input | One DVI input | One DVI input | One DVI input |
| HDMI Input | One HDMI input | One HDMI input | One HDMI input | One HDMI input | One HDMI input |
| Mains Input | AC100-240V,50/60Hz | AC100-240V,50/60Hz | AC100-240V,50/60Hz | AC100-240V,50/60Hz | AC100-240V,50/60Hz |
| Power Consumption | 400W (For fan cooling) | 400W (For fan cooling) | 550W (For fan cooling) | 550W(For fan cooling) | 400W(For fan cooling) |
| Standby Power consumption | 30W | 30W | 30W | 30W | 30W |
| Temperature Control | Intelligent constant temperature control | Intelligent constant temperature control | Intelligent constant temperature control | Intelligent constant temperature control | Intelligent constant temperature control |
| Operating Temperature | -30°C~55°C | -30°C~55°C | -30°C~55°C | -30°C~55°C | -30°C~55°C |
| Storage Temperature | -40°C~75°C | -40°C~75°C | -40°C~75°C | -40°C~75°C | -40°C~75°C |
| Working/Storage Humidity | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% |
| Cooling system | Forced air cooling or Air conditioner (Optional) | Forced air cooling or Air conditioner (Optional) | Forced air cooling or Air conditioner (Optional) | Forced air cooling or Air conditioner (Optional) | Forced air cooling or Air conditioner (Optional) |
| Hardware |
Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) |
Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) |
Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) |
Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) |
Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) |
| Software |
Content releasing system from the server
Player system Inquiry system(Optional) Local monitorng security system(Optional) Remote network (Optional) |
Content releasing system from the server
Player system Inquiry system(Optional) Local monitorng security system(Optional) Remote network (Optional) |
Content releasing system from the server
Player system Inquiry system(Optional) Local monitorng security system(Optional) Remote network (Optional) |
Content releasing system from the server
Player system Inquiry system(Optional) Local monitorng security system(Optional) Remote network (Optional) |
Content releasing system from the server
Player system Inquiry system(Optional) Local monitorng security system(Optional) Remote network (Optional) |
