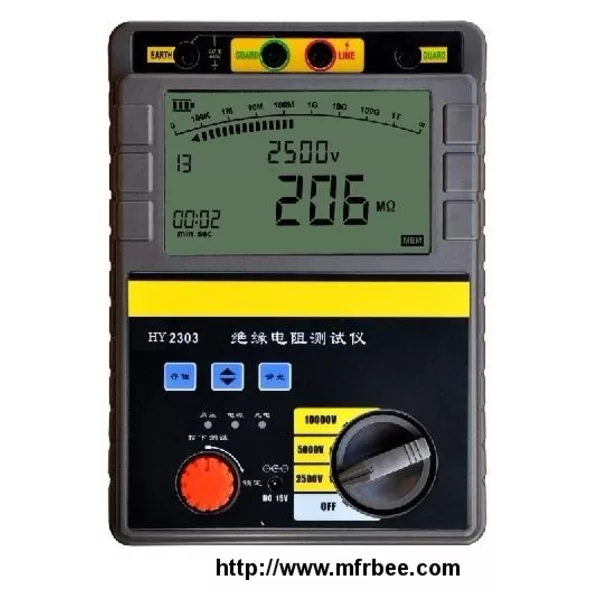

Portable Digital Insulation Resistance Tester

I. General introduction

Electric test rules conduct a series of insulation performance test on the requirement of various electric equipment such as cable, electric engine, electric generator, transformer, mutual inductor, high voltage switch and lightning arrester etc.

II. Main technical index

1. Output voltage: DC500V ,DC1000V ,DC2500V, DC5000V

Error: ±2%FS(FS is full range value);

2. Short circuit current:>3.5mA

3. Test precision

2 ~10MΩ error :±5%FS(FS is full range value);

10M ~10GΩ error :±2%FS(FS is full range value );

10 ~200GΩ error:±5%FS(FS is full range value);

more than 200GΩ error:±10%FS(FS is full range value);

4. Use condition

Ambient temperature:0°C-40°C Relative humidity:≤70%RH

5. Suitable power scope

AC: 220V±10%

6. Cubage and weight

Cubage: 280mm×210mm×100mm; weight:<3kg
