Duct Rodder
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- roll
- Delivery
- 15 Days
Specifications
Duct rodder, Conduit rodder, Cable puller, Fiberglass duct rodder, Fish tape, Duct rod, Push pull rod, FRP duct rodder

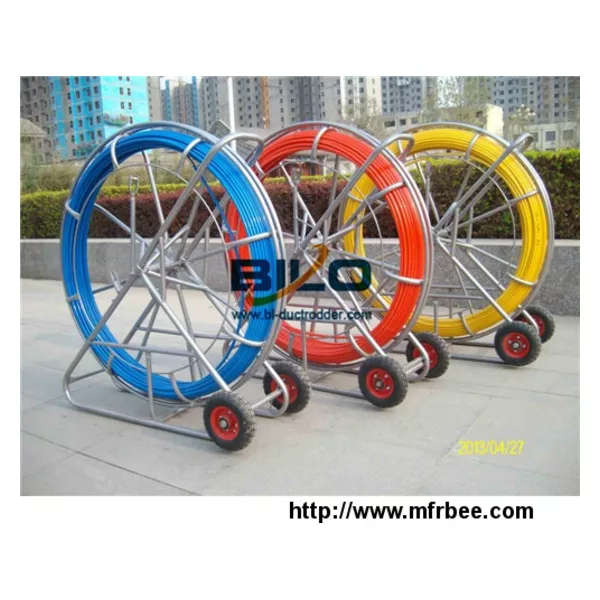

Duct rodder is an auxiliary tool applied in towing lead-rope through a pipe. The rod surface is hard and smooth, so it can get through the narrow pipe or channel easily. The inner core of the rod is made of fiberglass and unsaturated polyester resin. The outside layer is smooth and firm ABS resin. It is widely used for the cables works or cleaning in cable pipe or channels.
Features
1. Great rigidity and strength
2. Light & easy to use
3. Excellent flexibility force
4. Quickly delivery
5. Safe, non conductive and no kink
6. Anticorrosion, good elasticity, long working life
Structure
1. Fiber glass rod inner: Extruded by fiber glass and unsaturated polyester resin at high temperature.
2. Fiber glass rod outer: Medium density ABS resin for the insulating and jacketing of cables.
3. Assembly: metal frame sprayed paint; rubber wheels assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
4. Copper wire inside is optional which is for tracing easily.
5. Rolling bearing cage (wheel transport) for mobility will be light and easy to use in the field.
6. Feed device allows rod to feed out or be back with easy push or pull of rod
7. Rustproof bull-nose pulling eye and accessories.
FRP rod information
1. Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
2. High tensile strength and bending properties to make it go through narrow pipes easily.
3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature
4. Its outer protected layer is made of high density ABS resin, which has good anti-UV capability, the advantage of smooth, wear-resistant and long service life.
5. There are meter marks on the rod for the user easily read it. The marks is waterproof, ultraviolet and it can be still clear even after using long time.
6. There are several colors available at option.
7. Rod colors can be optional; Red, blue, orange, yellow, green, white, etc.
8. Rod Length (m): 1-500m
9. Rod Diameter , weight bending radius
