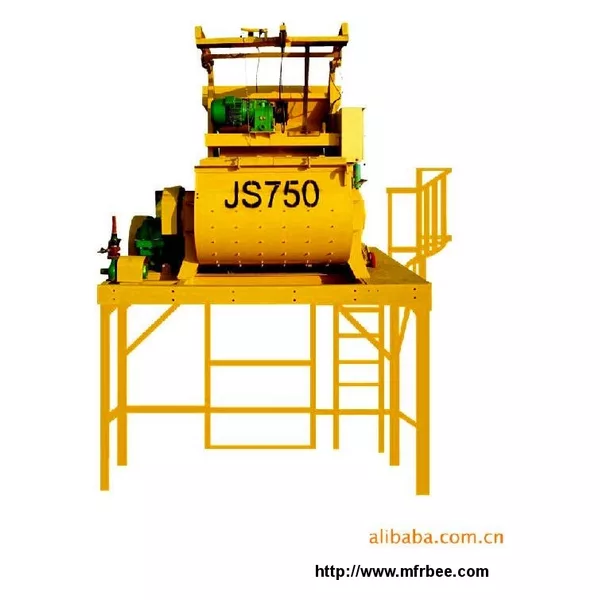

JS750 compulsory concrete mixer
Product Quick Detail
- FOB Price
- USD $9,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- export standard
- Delivery
- 15 Days
Specifications
Brief introduction of Js750 compulsory concrete mixer
DONGCHEN Js750 compulsory concrete mixer is compulsory twin-shafts concrete mixer, which is composed of feeding system, discharging system, water supply system and electrical system. we use high manganese wear-resisting cast steel lining board and mixing blades which is durable
and convenient to replace. JS series of concrete mixer we have: JS500, JS750, JS1000, JS2000, JS3000, and JS4000.
Features of Js750 compulsory concrete mixer.
1.As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features
short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace
3.Discharge system: Hydraulic & manual mode, drive reposeful and low noise , Auto-lubrication system ensures the mixing system can operate continually for a long time
4.Js750 compulsory concrete mixer has the advantages of reasonable design, compact structure, convenient operation stable working, good mixing quality, high efficiency, low energy consumption, low noise and long life wearing parts, etc.
Parameter
| JS750 | ||
| Discharge capacity（L） | 750 | |
| Charge capacity（L） | 1200 | |
| Productivity （m3/h） | ≥37.5 | |
|
Maximum aggregate diameter
（pebbles/crushed stone）（mm） |
80/60 | |
| Mixing blade | Rotate speed(r/min) | 35r/min |
| Quantity | 2×7 | |
| Mixing motor | Model | Y200L-4 |
| Power（kw） | 30 | |
| Lifting motor | Model | YEZ132M-4-B5 |
| Power（kw） | 7.5 | |
| Water pump | Model | 65DWB-35-5 |
| Power（kw） | 1.1 | |
| Hopper lifting speed（m/min） | 18 | |
| Outline dimension(L×W×H)(mm) | Transport dimension | 3650×2600×2890 |
| Working dimension | 4951×3650×6225 | |
| Total weight(kg) | 5500 | |
| Discharge height（mm） | 1600 |
