JZC350 Concrete Mixer
Product Quick Detail
- FOB Price
- USD $4,500.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- export standard
- Delivery
- 15 Days
Specifications

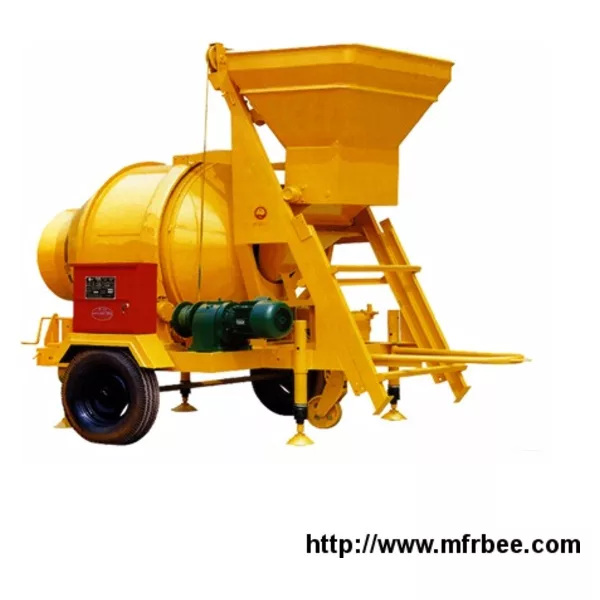

Brief introduction of JZC350 concrete mixer
JZC350 concrete mixer is a gravity type of double-conic reversing drum concrete mixer, discharging
with the double wimble rotating reversely, JZC350 concrete mixer transit by gear, the drum rotates clockwise during mixing and anti-clockwise during discharging, the mobile electric concrete mixer is mainly
composed of mixing drum, feeding hopper, and water supply.JZC 350 concrete mixer can mix plasticity and damp-dry rigid concrete. These mixer services for ordinary construction site, roads, bridge
projects and precast plant. The electric mobile concrete mixer machine can be dragged to move by two wheel，the Max speed is 20km/h. It is easy to operate by electrical control box. Electric power supply, driven by electric motor，according to different feeding way, mobile electric concrete mixer can realize hoist hopper feeding and skip hopper feeding.
Features of JZC350 concrete mixer
This machine is an advanced type of mixing machine. It is original in structure with a light weight and beautiful appearance. It can be operated and maintained easily and have a high productivity and good-quality mixing.
Parameter
| Model | JZC350 |
| Discharge volume (L) | 350 |
| Charging volume (L) | 560 |
| Capacity (m3/h) | 10-14 |
| Drum rotating speed (r/min) | 14 |
| Max aggregate size (mm) | 60 |
| Water feeding precision | ≦2％ |
| Mixing power (kw) | 5.5 |
| Lifting power (kw) | 4.5 |
| Water pump (kw) | 0.55 |
| Tyre | 6.50-16 |
| Max. hauling speed (kw/h) | 20 |
| Dimensions (mm) | 2766*2140*3000 |
| Weight (kg) | 1950 |
Remark:
1.The mini.order is :1 set 5.Quotation validity period:one month
2.Country of origin:P.R.C 6.P.O.To shipping lead-time:8-25days
3.Payment mode:L/C TT 7.Trade Terms: FOB, CIF
4.Payment period:At sight 8.Delivery port: China port/Qingdao
