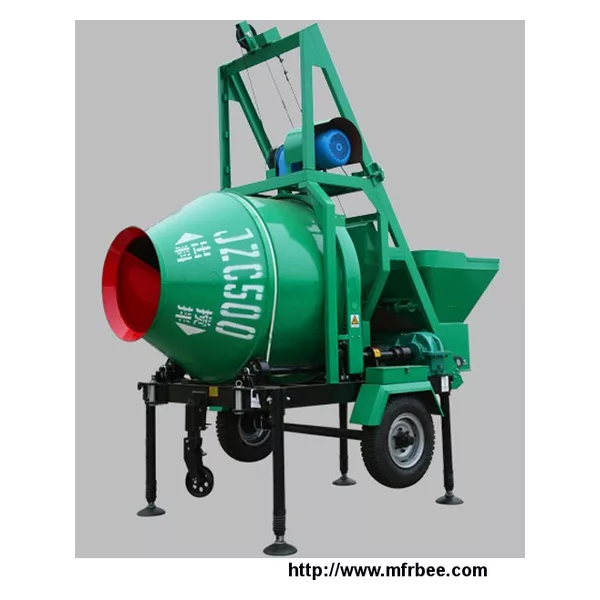

JZC500 Concrete Mixer
Product Quick Detail
- FOB Price
- USD $8,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- export standard
- Delivery
- 15 Days
Specifications
Brief introduction of JZC500 concrete mixer
JZC500 concrete mixer is a gravity type of double-conic reversing drum concrete mixer, discharging with the double
wimble rotating reversely, JZC500 concrete mixer transit by gear, the drum rotates clockwise during mixing and anti-clockwise during discharging, the mobile electric concrete mixer is mainly composed of mixing drum, feeding hopper, and water supply.JZC 500 concrete mixer can mix plasticity and damp-dry rigid concrete. These mixer services for ordinary construction
site, roads, bridge projects and precast plant. The electric mobile concrete mixer machine can be dragged to move by two wheel，the Max speed is 20km/h. It is easy to operate by electrical control box. Electric power supply, driven by electric motor，according to different feeding way, mobile electric concrete mixer can realize hoist hopper feeding and skip hopper feeding.
Parameter
| Model | JZC500 |
| Discharge volume (L) | 500 |
| Charging volume (L) | 800 |
| Capacity (m3/h) | 20-25 |
| Drum rotating speed (r/min) | 13 |
| Max aggregate size (mm) | 60-80 |
| Water feeding precision | ≦2％ |
| Mixing power (kw) | 11 |
| Lifting power (kw) | 5.5 |
| Water pump (kw) | 0.75 |
| Tyre | 7.50-16 |
| Max. hauling speed (kw/h) | 20 |
| Dimensions (mm) | 5226*2200*5460 |
| Weight (kg) | 3100 |
Remark:
1.The mini.order is :1 set/sets
2.Country of origin:P.R.C
3.Payment mode:L/C TT Western Union
4.Payment period:At sight
5.Quotation validity period:one month
6.P.O.To shipping lead-time:8-25days
7.Trade Terms: FOB, CIF
8.Delivery port: China port/Qingdao
