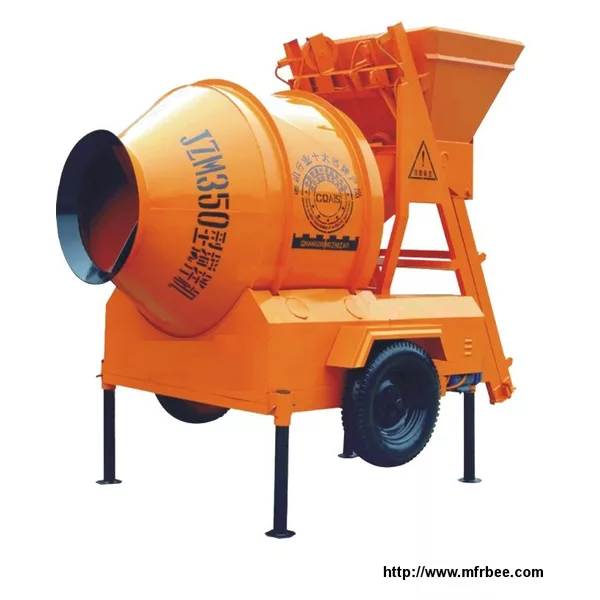

Brief introduction of JZM350 concrete mixer
JZM350 concrete mixer is a gravity type of double-conic reversing drum concrete mixer, discharging with the
double wimble rotating reversely, the drum of JZM transit by friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging, the mobile electric concrete mixer is mainly composed of mixing drum,
feeding hopper, and water supply.
JZM350 concrete mixer can mix plasticity and damp-dry rigid concrete. These mixer services for ordinary
construction site, roads, bridge projects and precast plant. The electric mobile concrete mixer machine can be dragged to move by two wheel,the Max speed is 20km/h. It is easy to operate by electrical control box. Electric power supply, driven by electric motor,according to different feeding way, mobile electric concrete mixer can realize hoist hopper feeding and skip hopper feeding.
Features of JZM350 concrete mixer
This machine is an advanced type of mixing machine. It is original in structure with a light weight and beautiful appearance. It can be operated and maintained easily and have a high productivity and good-quality mixing.
Parameter
Model | JZM350 |
Discharge volume(L) | 350 |
Charging volume(L) | 560 |
Capacity (m3/h) | 15~18 |
Drum rotating speed (r/min) | 15 |
Max. aggregate size (mm) | 60 |
Water feeding precision | ≤2% |
Mixing power (kw) | 5.5 |
Lifting power (kw) | 4.5 |
Water pump (kw) | 0.55 |
Tyre | 6.50-16 |
Max. hauling speed (kw/h) | 20 |
Dimensions (m) | 3.8x2.1x2.7 |
Weight (kg) | 1970 |
Remark:
1.The mini.order is :1 set/sets
2.Country of origin:P.R.C
3.Payment mode:L/C TT Western Union
4.Payment period:At sight
5.Quotation validity period:one month
6.P.O.To shipping lead-time:8-25days
7.Trade Terms: FOB, CFR, CIF
8.Delivery port: China port/Qingdao
