JS500/750 Joined Bodies compulsory concrete mixer

Application of JS500/750 Joined Bodies Compulsory Concrete Mixer

JS500/750 Joined Bodies Compulsory Concrete Mixer are mainly used to produce commodity concrete, such as hard concrete, plastic concrete, fluid concrete, various mortars, etc.

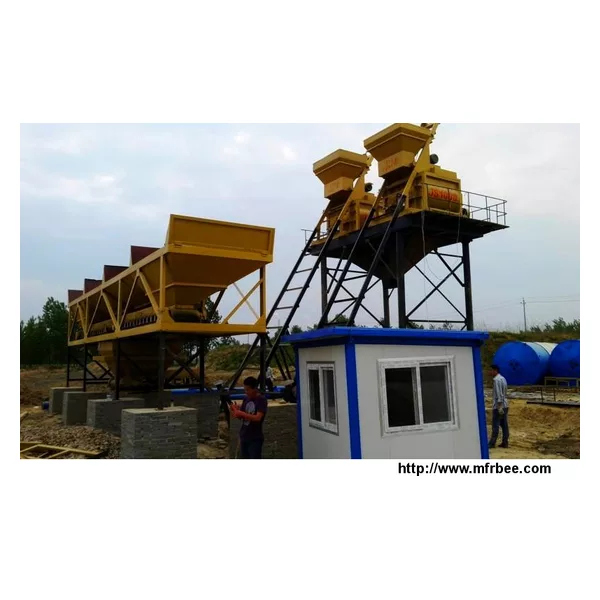

JS500/750 Joined Bodies Compulsory Concrete Mixer can not only work independently, but also can be adopted as the mixer in the concrete batching plant which can be used for various kinds of large, medium or small prefabricated factory, construction sites roads, bridges, airports and tunnels etc.

Working Principle of JS500/750 Joined Bodies Compulsory Concrete Mixer.

Mixing system is composed of electric motor, reducer, exposed gear, and lubrication system.There are two horizontal mixing shafts in the mixing drum, and the mixing blades are fixed at the two mixing shafts. The reducer with double gear is driven by electric motor, and the two shafts driven by exposed gear are rotating in the opposite direction at the same speed.There is one discharge gate at the bottom of the mixing drum, discharging by manual handle or pneumatic device.

Features of JS500/750 Joined Bodies Compulsory Concrete Mixer.

1.As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short

mixing time, good homogeneity and reliable operation.

2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace

3.Discharge system: Hydraulic & manual mode, drive reposeful and low noise , Auto-lubrication system ensures the mixing system can operate continually for a long time

4.JS500/750 Joined Bodies Compulsory Concrete Mixer has the advantages of reasonable design, compact structure, convenient operation stable working, good mixing quality, high efficiency, low energy consumption, low noise and long life wearing parts, etc.
