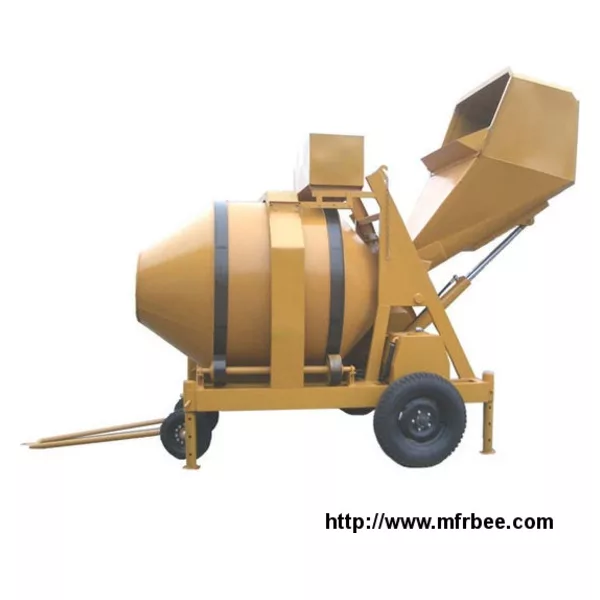

Brief introduction of JZC500 concrete mixer
JZC500 concrete mixer is a gravity type of double-conic reversing drum concrete mixer, discharging with the double wimble
rotating reversely, JZC500 concrete mixer transit by gear, the drum rotates clockwise during mixing and anti-clockwise during
discharging, the mobile electric concrete mixer is mainly composed of mixing drum, feeding hopper, and water supply.
Features of JZC500 concrete mixer
This machine is an advanced type of mixing machine. It is original in structure with a light weight and beautiful appearance. It can be operated and maintained easily and have a high productivity and good-quality mixing.
Parameter
Model | JZC500 |
Discharge volume (L) | 500 |
Charging volume (L) | 800 |
Capacity (m3/h) | 20-25 |
Drum rotating speed (r/min) | 13 |
Max aggregate size (mm) | 60-80 |
Water feeding precision | ≦2% |
Mixing power (kw) | 11 |
Lifting power (kw) | 5.5 |
Water pump (kw) | 0.75 |
Tyre | 7.50-16 |
Max. hauling speed (kw/h) | 20 |
Dimensions (mm) | 5226*2200*5460 |
Weight (kg) | 3100 |
