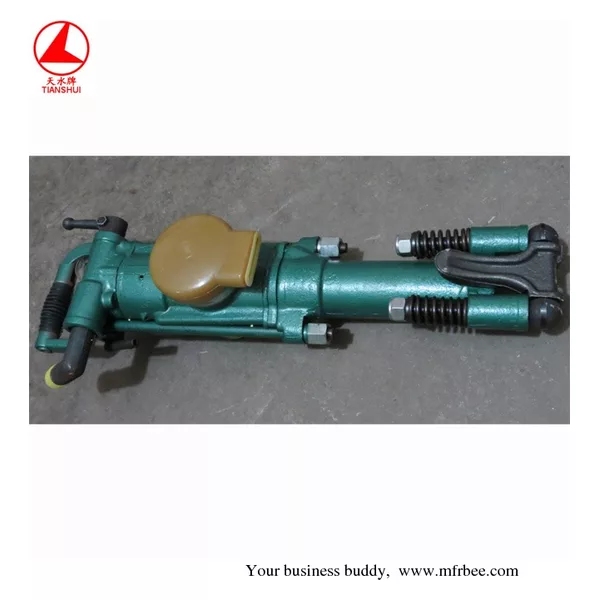

Yt24 Rock Drill

YT24 hand held airleg rock drill is rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, railway, traffic, water conservancy and so on. According to the different of space, it can be used with FT140BD short air leg and FT140B long air leg.

YT24 Rock Drill

1.Weight:24Kg

2.Length:678mm

3.Cylinder Diameter:70mm

4.Piston Stroke:70mm

5.Working Air Pressure:0.4~0.63Mpa

6.Impact Frequency:≥31HZ

7.Air Consumption:≤66.7L/S

8.Air Pipe Inner Dia:19mm

9.Water Pipe Inner Dia:13mm

10.Bore Size:34~42mm

11.Drill Shank Specification:22*108mm
