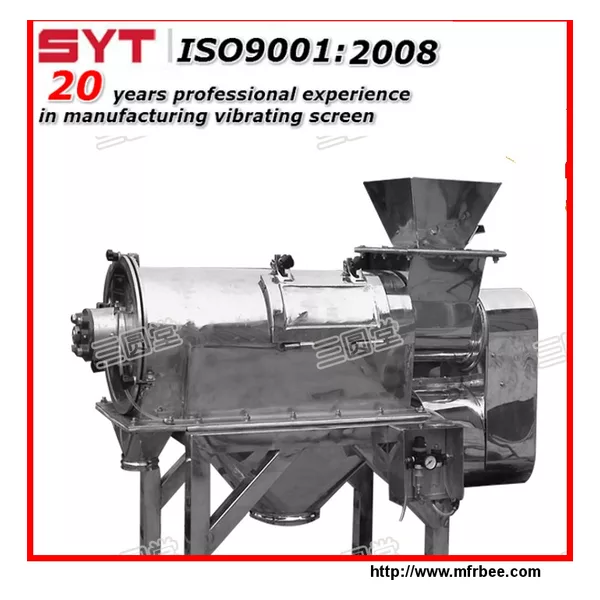

Airflow Sieving Machine
Product Quick Detail
- USD
- 1000
- Place Of Origin
- China
- Voltage
- per customer's request
- Warranty
- 12 months
- Application
- Food Processing,Abrasive material
- Delivery Port
- Shanghai,Tianjing
- Minimum Order
- 1
- Material
- Stainless steel
- Power
- variable
- Type
- Circular
- Wight
- 120kg
- Packaging
- 1 set wood carton
- Delivery
- 10 Days
Specifications
Working principle
The screen holder is placed inside the machine. Bulk materials mixed with airflow and atomization pass the screw conveyor device, enter the screen holder. The undersize materials are sprayed through the screen cloth and discharged from the outlet under the action of centrifugal force and the cyclone propelling power, which caused by the blade inside the net tube. The oversize material, which can not cross the screen cloth, is discharged from the rough material outlet along the inside surface of the tube.
Features
l No oversize end bearings or seals
l Hinged oversize end door
l Easy to remove screen and screen retainer
l Hygienic design sifting screen
l Easy to inspect and/or clean
l No tools required for screen, paddle and screw removal
l Fully rotatable screen for in-site inspection
l Range of different screen options including; nylon, woven wire and wedge wire
l The sifter can be stripped down for cleaning without the need for specialist maintenance assistance
l Standard available model for BL- Dust-tight cantilevered centrifugal sifter
Application
The machine is available in the industries such as metallurgy, mining, pharmacy, food, chemical, metal powder and nonmetal etc.
More technical parameter of China centrifugal screen
Technical parameter
| Model | Material |
Screen cage size mm
(diameter*length) |
Screen material | Application |
| SY 18-65 | Q235A Carbon steel | 180mm*650mm |
Stainless steel or
Nylon screen |
500mesh below |
| SUS Stainless steel | 180mm*650mm | |||
| SY 30-100 | Q235A Carbon steel | 300mm*1000mm | 500mesh below | |
| SUS Stainless steel | 300mm*1000mm | |||
| SY 50-130 | Q235A Carbon steel | 500mm*1300mm | 500mesh below | |
| SUS Stainless steel | 500mm*1300mm | |||
- Country: China (Mainland)
- Business Type: Manufacturer,Exporter
- Market:Americas，Africa, Asia,Middle East, Oceania
- Founded Year:2001
- Address:No 811 Qingnian road Xinxiang City, Henan Province China.
- Contact:Peter wang
