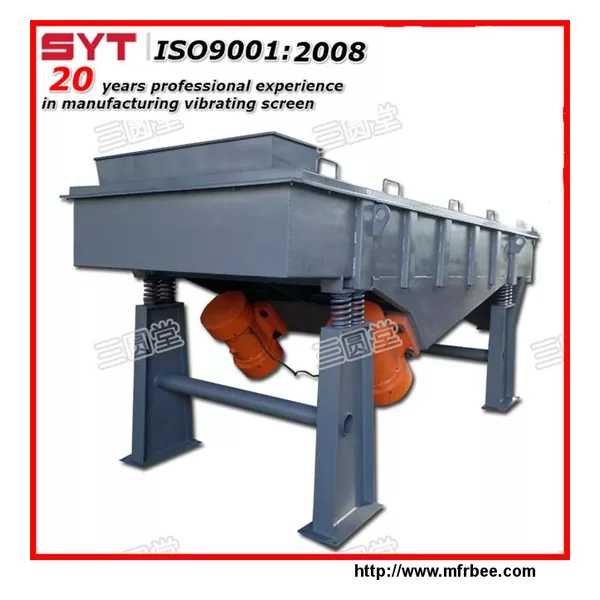

Linear Vibrating Screen

USD
1000
Place Of Origin
China
Voltage
per customer's request
Warranty
12 months
Application
Food Processing,Abrasive material
Delivery Port
Shanghai,Tianjing
Minimum Order
1
Material
carbon steel
Power
variable
Type
Linear
Wight
1020kg
Packaging
1 set wood carton
Delivery
10 Days

Specifications

high precision screening
large capacity, simple structure

low energy consumption, low noise,

stable and reliable

long life


Working Principle:

SY series linear vibration sieve is used as a source of vibration excitation by vibrating motor, so that the sieve material being thrown up and forward for linear motion ,in order to match reasonable sieve.There are several balls on the bottom of screen frame hit each other when vibrating, which can clear screen and avoid blocking effectively .

Features:

1) Continuous production, single or multi-layer auto-classification filtering

2) Good sealing performance, no dust overflow.

3) Energy-saving and low noise with vibration motor.

4) Start fast and stop smoothly

5) Simple installation, easy operation and maintenance

6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.

7) High-precision screening reach to 96% or above, large processing capacity.

Application:

It is suitable for any dry material screening from 0.74mm-5mm., the largest particle size is 10mm.It is widely used in chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries.

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and ceramic industry: building sand,mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Technical parameters

Model SYZ-520 SYZ-840 SYZ-1030 SYZ-1255 SYZ-1650
Dimension(mm) 500*2000 800*4000 1000*3000 1200*5500 1600*5000
Granularity(mm) 0.074-60 0.074-60 0.074-60 0.074-60 0.074-60
Speed(r/min) 960 960 960 960 960
Amplitude 4-8 4-8 4-8 4-8 4-8
Deck 1-4 1-4 1-4 1-4 1-4
Power(kw) 2×0.75 2×1.5 2×1.9 2×2.2 2×3.0
