iron ore vibrating screen

Packaging
Wooden packing. the packing size should be according to the actual size
Delivery
15 Days

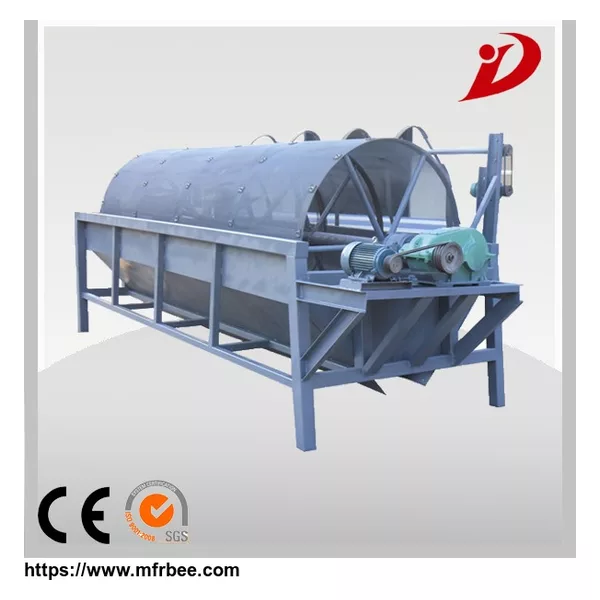

roller iron ore vibrating screen

Technical parameter:

1.Model: DYT-1800

2.Diameter(mm): 1800

3.Length of Screen Surface(mm): 1500-3000 or as requested,It is related to the sifting ratio of the material

4.Capacity(m3/h): 80-150

5.Power(kw): 7.5kw

Feature and advantages:

1.Drum screen are available in different configuration like single drum, double drum and multiple drum.
2.Sieve tube can be closed, airtight dust easily
3.The whole machine has high reliability, the one-time investment is less
4.Fully sealed structure and environmentally friendly
5.Equiped with high yield and reasonzble design
6.The IP54 protection rank, F level insulation, greatly extend the vibration motor's service life; motor can run in the bad environment.
7.Various structure providing to customer.Containing carbon steel sprayed and stainless steel. Excellent quality
8.The material residence short time in the screening machine
9.Optimum adaptation to the particular screening job by changing the angle of throw
10.The screen cloth is held in the frame very tightly by a special process which enables clean screening,less screen wear and longer screen life

Working principle:

1.Trommel screen consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet.

2.Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down.

3.This action is repeated with each revolution along the length of the drum.

4.The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

Application field:

1.Quarry industry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.

2.Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc. 3.Chemical industry: fertilizer industry etc.

4.Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc. 5.Metallurgy, construction, building materials, abrasives, and other industries


Picture display:

trommelcircular effcience vibratingdrum sieve screensand washing drum screenroller sieve

Note:

If you are interested in our product,in order to recommed the appropriate model,please kindly tell us:
1.material to be processed?
2.granule size of the materials?(or mesh number)
3.moisture content if any?
4.granule size proportion if possible to get?
5.capacity(tons or kg or litter per hour or day)
6.local power supply(voltage and frequency)

Trade infomation:

1.Trade Terms:FOB,CIF;

2.Payment:T/T,L/C,Western Union,Escrow;

3.Payment Condition:30 deposit in advance,70% balance after delivery;

4.Delivery Time:about 20 working days after receiving your payment;

5.Packing: Wooden packing. the packing size should be according to the actual size;

6.Shipping:By sea,by air,and by rail.

About us:

Company profile:

1.Dayong vibration Equipment CO.,LTD manufactures high quality DY series vibration equipment,crusher,conveyer,etc.The products are exported to many countries and regions.

2.We are direct factory.Our company can customize professional product according to the client's desire.

3.Our production is famous for advanced design, precise manufacture, stable quality ,reasonable price and all-round after-sales service.

4. We are well-reputed with domestic and foreign user's consistent high praise.

Part of achievements:

Countries Product Model Quantity Unit
Doha DYT-1500 Roller vibrating screen 8 Set
USA DYZ-1000-1S Vibrating screen for pharmaceutical 2 Set
Cameroon DY-1000-2S Standard vibrating screen 1 Set
Algeria DY-1000-2S Standard vibrating screen 2 Set

After-sale service:

1.According to the ISO9001 series standard, we have established the quality manual and program files, established the quality responsibility system so as to ensure the standard quality of our vibrating screen.

2.We have been providing service by chasing customer periodically.

3.Customer could get service supply in 24 hours and service network can solve customer service request completely.

Contact ways:

1.Tel: 86+373-3669005

2.Fax: 86+373-3669006

3.Mobile: 86+15090451649

4.Skype: roy1990zzh

5.QQ: 2862629566
