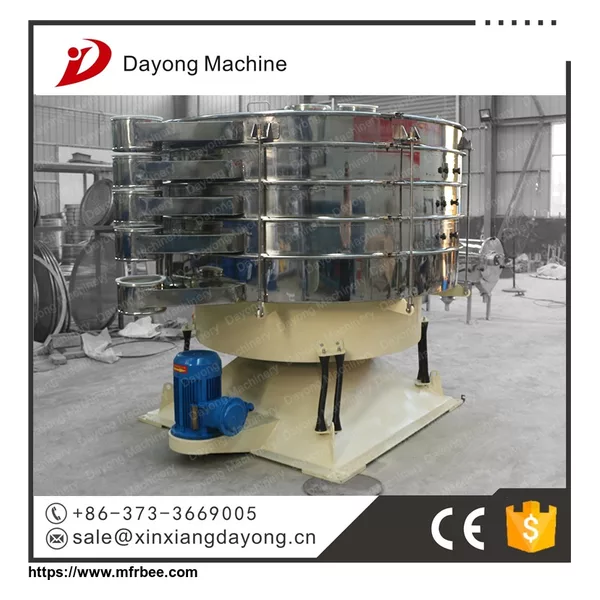

industrial vibrating screen machine
Product Quick Detail
- Packaging
- Wooden packing. the packing size should be according to the actual size
- Delivery
- 15 Days
Specifications
Industrial vibrating screen machine
Company information
Our company is the manufacturer which produces manufacture of the vibrating screen for many years.Our company is a new-type shareholding system company which combines several decades of manufacturing experience and modern technology together.We are direct factory.
Product detailed information
| Working principle | Basic rotary motion is similar to hand screening .The eccentricity is adjustable from 25 to 40mm, low-speed V-belt drive is adjustable from 120 to 360rpm.Each product'dwell time can be adjusted in a radial and tangential angle ,towards the drive axis.Therefore,establishing the horizontal and throwing three-dimensional rolling movement, materials are evenly dispersed on the entire sieve surface from the center to the outer edge, and thus spread towards the axis by spiral movement. Small particles are then finished in the whole sieving process.The horizontal and vertical acceleration are increased with the movement of the particles.Then the particles which are close to mesh size will be successfully separated; The larger particles are transported to the exit, the flow can be controlled by a regulated oriented device at the exit, the oriented device is another factor which controls the dwell time of the materials. |
| Main Parts | Rubber ball,Viewport,Outlet,Oil filler pipe,Principal axis,Driven shaft,Bottom frame,Pyramid-shaped base ,Spindle counterweight iron,V belt,Drive motor,Driven shaft counterweight iron,Aggravating blocks,Protection board,Oil injection hole,Reellocks,Dust c |
| Advantages | 1.Low frequency,light load,the power system equipment cause little damage to the swing screen and the material |
| 2.Low frequency,light load,the power system equipment cause little damage to the swing screen and the material | |
| 3.100% statically and dynamically balanced for vibration free installation in steel structures | |
| 4.Tumbling movement indefinitely adjustable, resulting in precise control of residence time on the screen, capacity and screening efficiency can be coordinated and optimized | |
| 5.Screen motion is recordable, therefore the optimal operating data are reproducible at any time and result in constant product quality | |
| 6.Gentle rocking screening without any damage to the primary structure of the particles screened, less possibility of static producing, and the best choice for those screened materials which are easy to be inflammable,explosive as well as those been easy to produce static electricity | |
| Application | Apply to mine, casting, abrasive, building materials, cement, chemical, fertilizer, medicine, light industry, paper making, food, food industry, salt, grain and other granular, powder industry dry wet type screening, the liquid-solid separation wastewater recycling and trust in the sieve occasion |
Technical parameters of industrial vibrating screen machine
DYB600
1.Model: DYB600
2.Diameter(mm): 600
3.Screening surface (m²): 0.292
4.Layer: 1-5
5.Power(kw): 0.25
DYB1000
1.Model: DYB1000
2.Diameter(mm): 1000
3.Screening surface (m²): 0.785
4.Layer: 1-5
5.Power(kw): 1.5
DYB1200
1.Model: DYB1200
2.Diameter(mm): 1200
3.Screening surface (m²): 1.13
4.Layer: 1-5
5.Power(kw): 2.2
We are looking forward to your inquiry!
if you are interested in our products,pls email or call us.
Tel:86-373-3669003 Fax:86-373-3669006 Skype:xinxiangdayong06
welcome to visit our factory and look forward to your cooperation !
