Model: YC-SG09
Material:high quality low carbon steel , stainless steel
Surface treatment:Hot-dipped galvanizing, polishing or untreated
MOQ:10 pcs or 500kgs
Daily ouput:1000square meter or 100tons
FOB Price range: Fob Tianjin xingang USD12-90per sq.m USD700-950 per ton
payment terms: T/T, L/C
Delivery time:
Delivery Detail: 10days-20 days after confirmed
Manufactory: Anping Yachao hardware wire mesh manufacture co., ltd.

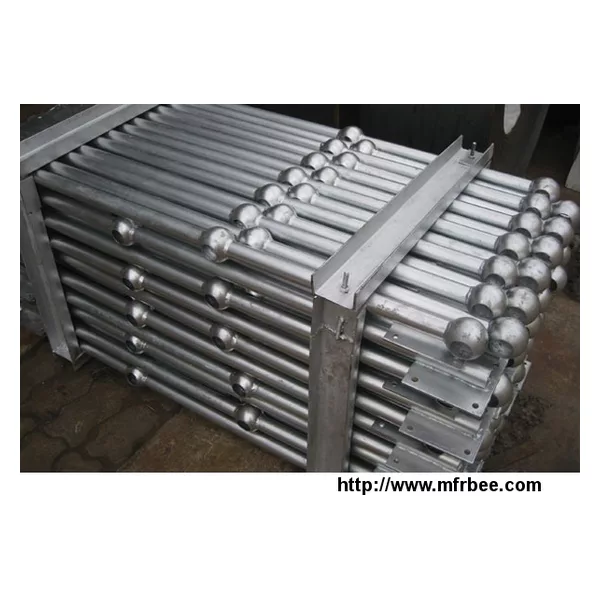

Products Name: hot dip galvanized steel ball joint handrail
Material: steel Q235
Size | Out Diameter of Ball | Out diameter of pillar | Out diameter of handrail | Out diameter of cross bar |
Standard Type (S) | 76(85) | 48.0(51.0) | 42.3(51.0) | 33.5(38.1) |
Economical Type (E) | 66(70) | 42.3(38.1) | 33.5(38.1) | 26.8(32.0) |
Note:
1. In the above, dimensions before the bracket are for carbon steel, while those in the bracket are for stainless steel. However, all final dimensions
must be subject to drawing confirmation of both parties.
2.Stanchion Spacing: 1000, 1200, 1500 mm, 2000mm
3. Height of Handrail.
(1)2 rails:
Horizontal Handrail: with a minimum height of 1100mm for the handrail.
Angled Handrail: with a minimum vertical height of900mm for handrail.
(2)3 rails: Generally 1200mm;
(3)1 rail or more than 3 rails are subject to specific de-sign.
4. Joint of Rail and Stanchion:
(1)Welding is generally adopted for joints with parcel antirust treatment.
(2)Bolts or pins are optional, with necessary holes to be drilled at site for installation.
5. If customer reduces the height of handrail or the thick-nessof steel pipe, or increase the main stanchion pitch, ect. so as to save cost, our company will not be responsible for any consequence
incurred.
