Patent No.: ZL201220134846

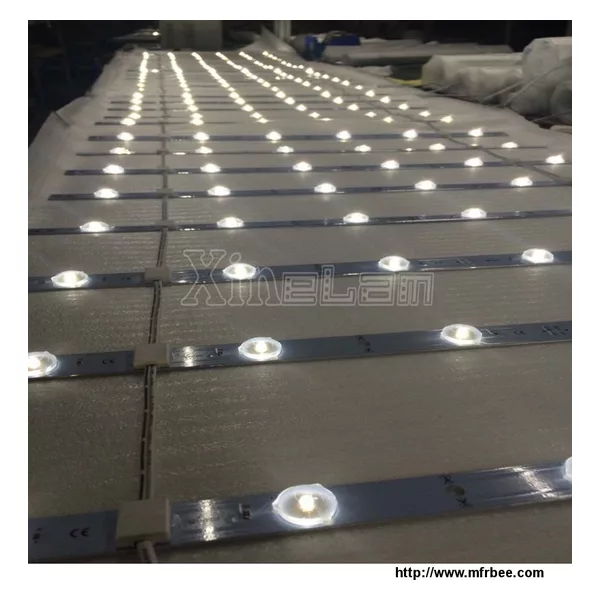

LED Matrix Lighting System is the most efficient, reliable, easy and economic lighting solution in the market for both indoor and outdoor sign boxes and large area back-lit
illumination. Designed to replace fluorescent lamps and other light sources in sign boxes or cabinets.
-
Powered by Epistar SMD2835 LED
-
Wide viewing angle with even light output 160degrees
-
Backlighting to light boxes minimal depth >30mm
-
Energy saving and high brightness 9000Lm per square meter
-
Cost-effective on lightbox illumination
-
Aluminum PCB dissipate heat quickly
-
Allow cutting every 1led to fit your light box sizes
-
Lower light decay and long life span up to 50000 hours
-
Waterproof IP68 rated (optional),ideal for outdoor use
-
Good color uniformity (CRI>80)
-
Easy installation and maintenance free
-
Available single sided or double sided
-
3 Years warranty
-
CE, RoHS approval
Model number
|
Single-side-RX-BKT41X2-500
|
Material
|
Rigid PCB + TV Lens
|
Lighting sources
|
6pcs LED chips
|
Strip Dimension
|
500mm
|
LED chips space
|
83mm
|
Strip space
|
93mm
|
Distance to the face-plate
|
>30mm
|
Waterproof
|
No, But waterproof available
|
Power consumption
|
4.2W/pcs
|
DC output voltage
|
DC24V
|
Luminous flux
|
400Lm/pcs
|
LED luminous efficiency
|
90Lm/W
|
Bean angle
|
160°
|
Color rendering index (CRI)
|
Ra>80
|
Light appearance(CCT)
|
2800~3200K, 3800~4250K, 6000~6500K
|
Applicable environment
|
Dry and Damp Location
|
Working temperature
|
-30~50
|
Lifespan
|
50,000hrs
|
Certification
|
CE, RoHS
|
