Retrofit lightbox illumination flexible LED dot matrix lighting system

Minimum Order
10
Place Of Origin
China
FOB Price
USD $2.80 / Piece
Packaging
420pcs each carton
Delivery
15 Days
Retrofit lightbox illumination flexible LED dot matrix lighting system

Patent No.: ZL201220134846

Model RX-BKT41X2-500
Input voltage DC 24V
LED Chip SMD2835 (Epistar)
Dimension 496x18x7mm/bar
LED QTY 6led/bar
Power 4.2W/bar
Lumens 400Lm/bar
LED distance 83mm
Strip Distance 93mm
Beam Angle 160°
Color WW2800-3200K, NW3800-4250K,CW6000-6500K
  • Maximum roll size 500x4650mm (0.5x4.65M) 50bars connected

LED Matrix Lighting System is the most efficient, reliable, easy and economic lighting solution in the market for both indoor and outdoor sign boxes and large area back-lit illumination. Designed to replace fluorescent lamps and other light sources in sign boxes or cabinets, the LED Matrix Lighting System provides excellent light uniformity, low maintenance, low energy consumption and environment friendly solution.

  • Powered by Epistar SMD2835 LED
  • Wide viewing angle with even light output 160degrees
  • Backlighting to light boxes minimal depth >30mm
  • Energy saving and high brightness 9000Lm per square meter
  • Cost-effective on lightbox illumination
  • Aluminum PCB dissipate heat quickly
  • Allow cutting every 1led to fit your light box sizes
  • Lower light decay and long life span up to 50000 hours
  • Waterproof IP68 rated (optional),ideal for outdoor use
  • Good color uniformity (CRI>80)
  • Easy installation and maintenance free
  • Available single sided or double sided
  • 3 Years warranty
  • CE, RoHS approval

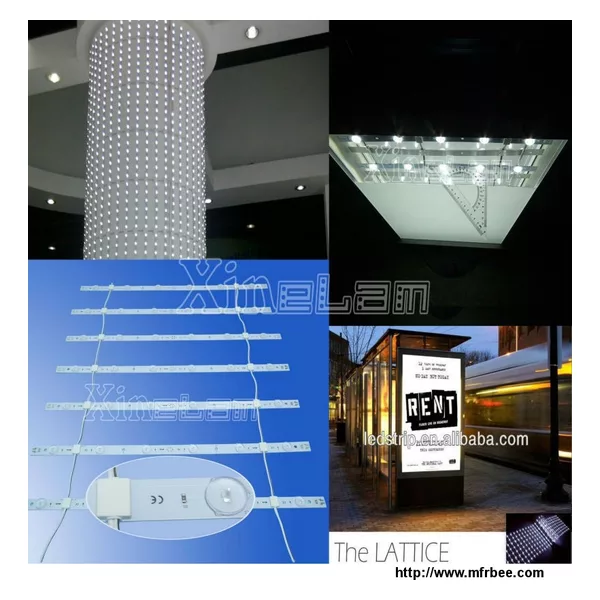

Product Applications
  • (1) Sign light boxes
  • (2) Indoor or outdoor sign cabinets
  • (3) Large advertising light boxes
  • (4) Large poster light boxes
  • (5) Internally lighted billboards
  • (6) Double-side signboard
  • (7) Other signage display areas
  • (8) Wall, glass and column decoration
