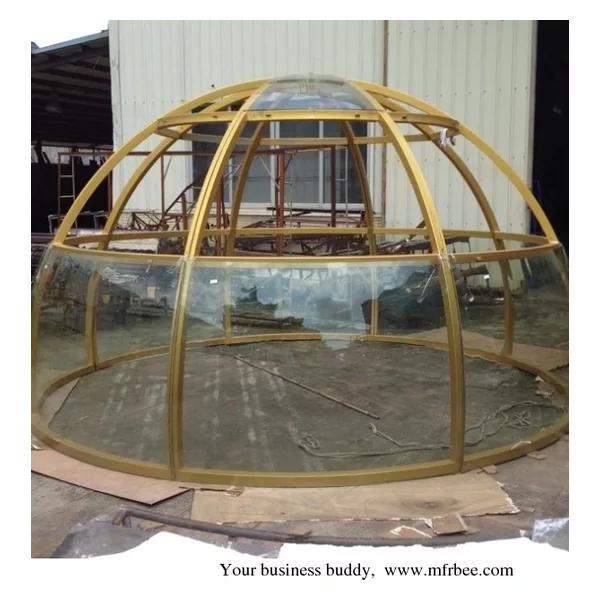

Dome glass

Dome glass buildings are very popular modern construction. Profiting from the development of building technology, the office building, Gymnasium, hotel, malls, green house ect. all choose this building forms.

Glass for dome:

Actually it is a kind of glass curtain wall. Double glazing glass is widely used to dome. It has high specification for sound insulation, heat insulation, anti-frosting, moisture proof and wind resistance.

This glass will make the construction interior cool in summer and warm in winter.

Glass combination:

Normally, it is the combination of energy saving double glazing glass with laminated glass (considering the safety)

There are 2 common glass combination of dome glass:

Energy saving laminated double glazing flat glass.

Representative:

Flat shaped glass for Pyramids buildings.

Glass Specification:

5mm clear tempered glass+1.52mm PVB+5mm clear tempered glass+12mm Air Space+5mm low-e tempered glass+1.52mm PVB_5mm clear tempered glass.

Glass Size:

2150mm Width*1802mm Height; 1075mm Width*1082mm Height

(Size and thickness could be freely chosen, just send you requirement to us)

2.Energy saving laminated double glazing curved glass.

Representative: Mushrif Mall Project in Abu Dhabi

Glass Specification:

12mm TGI's Blue tempered glass+18 Airspace+8mm AGC's Low-E tempered glass+1.52Blue PVB+8mm clear tempered glass

Glass Size:

3300mm Arc Length*1600mm Height

Curved Glass Radius: variable, also basing on the drawings

Quantity: More than 1,000 Square Meter

Technical requirement:

Different building, different region have different technical requirement for glass. Our dome glass thickness, U-value, Shading Coefficient, light transmittance could meet the special requirement from customers.
