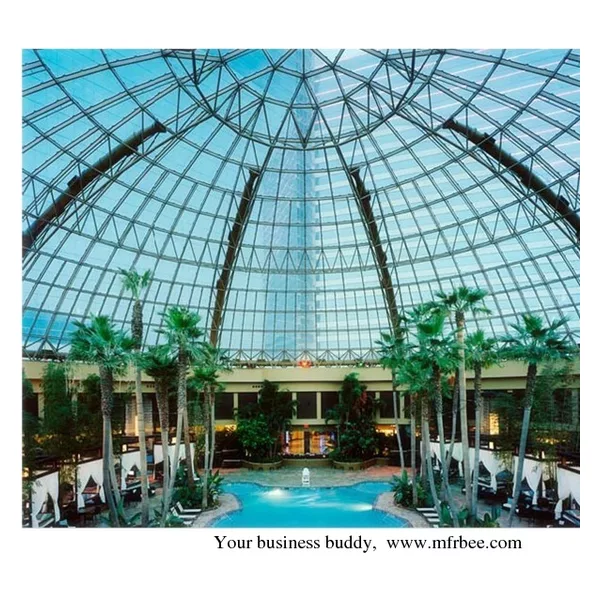

Glass dome

Glass dome roof is a special product. It could be used to the building tops to be an architectural art decoration, increasing the aesthetic of construction.

Also widely used to private residence, tower, green house, sunlight room, pub, bar and skylight etc.

Surprisingly, the small one even could be used as display cabinet in jewelry shop etc.

We can solve the glass roof problems which you meet：

1. About the design (Roof Structure and Glass Size)

Glass dome size could be freely chosen. Just need the radius and height of the whole roof, then design from our technical dept. will be sent to you.

Certainly, sketch or drawings will be provided and make clients clear about the dome roof.

2. About the glass roof shape

It cold be arcuation, cone, cylinder, pyramid etc. Certainly, the awning and skylight are included.

3. Glass combination.

. Safety first.

Tempered and laminated glass are the best.

. Clients requirement.

According to characters of different area and clients purposes, different glass will be provided.

Double glazing glass is widely used to glass roofs.

4. Glass Roof Sizes:

Minimum size: could be a small glass box with frame. (Display cabinet)

Maximum size: not limited.

5. About the frame.

Stainless steel #316 is suitable for this product. It is safer.

Frame colors are customized, normally it is metal color or black. Also you can choose color from the RAL or PANTONE color code.

6. Specialty:

Cylindrical bending and spherical bending glass is the specialty in our factory. It doesn’t like normal curved glass, which just has one radius. This kind of glass has 2 different radius, picture is given below:

Our representative works:

1. Glass Dome for Canadian Client:

Dome Glass: 8mm clear+12mm Argon+(5mm clear+1.52mm PVB+5mm clear) curved double glazing glass

Glass size: 1172*1237mm; 1518*651mm (Suggestions from our technical dept.)

Frame: SUS304 structural frame with paint white

2. Glass Cone

Cone Glass: 6mm clear+6mm low-e hot curved glass with 16mm holes

Glass size: 1700mm radius

Frame: Stainless steel frame #316 with natural color
