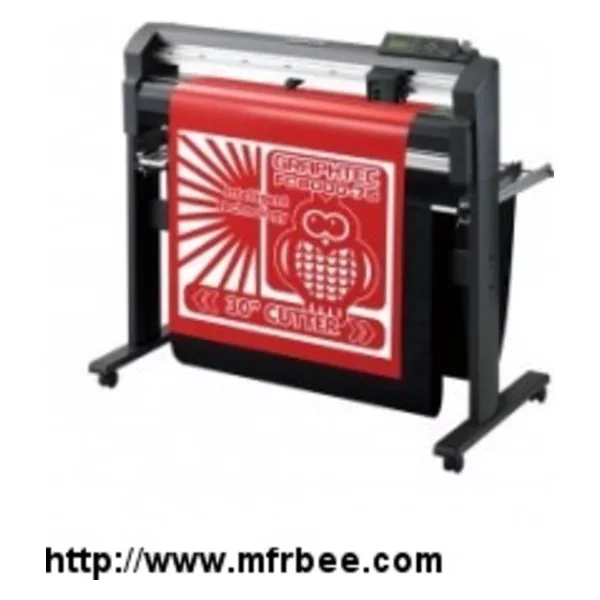

Graphtec FC8000-75
Product Quick Detail
- Place Of Origin
- Indonesia
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 25 Days
Specifications
Accept Paypal
The new FC8000 series is available in five model sizes:
FC8000-60 24", FC8000-75 30”, the FC8000-100 42”, the FC8000-130 54”, the FC8000-160. Maximum compatible media widths for each model are 30.3”, 36”, 48”, 60”, and 72” respectively.
New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been
added to the new series yet its competitive pricing remains.
With the world’s fastest throughput performance and superb accuracy, the new FC8000 series accommodates the most demanding cutting and plotting projects and provides users with the versatility
needed for a wide variety of applications.
Graphtec FC8000-75
Technical Specs & Details
| Model | FC8000-60 | FC8000-75 | FC8000-100 | FC8000-130 | FC8000-160 | |
|---|---|---|---|---|---|---|
| CPU | 32-Bit | |||||
| Configuration | Digital Servo Friction feed with MicroGritroll™ drive | |||||
| Max. cut width (expanded mode) | 610 mm (24 in) | 762 mm (30 in) | 1067 mm (42 in) | 1372 mm (54 in) | 1626 mm (64 in) | |
| Mountable media | Max. width | 770 mm (30.3 in) | 920 mm (36.2 in) | 1224 mm (48.2 in) | 1529 mm (60.2 in) | 1850 mm (72.8 in) |
| Min. width | 50 mm (2 in) | |||||
| Max. cross cut area | 734 mm (28.9 in) | 886 mm (34.9 in) | 1191 mm (46.9 in) | 1496 mm (58.9 in) | 1750 mm (68.9 in) | |
| Max. cutting speed (Axial) | 1485 mm / sec (58.5 in/s) at a 45°angle | |||||
| Max. axial acceleration | 4.0 G (39.2 m/s2) | |||||
| Cutting pressure | 20 g to 600 g (0.196 N to 5.88 N) in 48 steps | |||||
| Min. character size *1 | 3 mm (0.125 in) alphanumeric Helvetica med. Font | |||||
| Mechanical resolution | 0.005 mm (0.0002 in) | |||||
| Programmable resolution | GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL™ : 0.025 mm | |||||
| Repeatability *2 | Max. 0.1 mm / 2 m (0.0039 in / 80in) | |||||
| Tools | Accepts (1) cutting blade, (1) plotting pen, or (1) pouncing tool ; Second penholder (optional) | |||||
| Blade types | Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm) | |||||
| Pen types | Water-based fiber-tip, oil-based ballpoint, and disposable ink pens | |||||
| Pouncing tool type | Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter) | |||||
| Media types | Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film, high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc. | |||||
| Compatible paper for pouncing | Regular paper from 0.06 to 0.13 mm thick | |||||
| Standard interfaces | RS-232C / USB2.0 (Full speed) Option:Ethernet (10 BASE-T / 100 BASE-TX) | |||||
| Buffer memory | 2 MB | |||||
| Command sets | GP-GL / HP-GLTM *4 | |||||
| LCD display Graphic type | 3 inches LCD backlight type | |||||
| Power supply | 100 to 240 VAC/50 to 60 Hz (Auto switching) | |||||
| Power consumption | 160 VA max. | |||||
| Operating environment | Temperature: +10°C to +35°C | |||||
| Humidity: 35 % to 75 % (non-condensing) | ||||||
| Guaranteed accuracy environment | Temperature: +16°C to +32°C | |||||
| Humidity: 35 % to 70 % (non-condensing) | ||||||
| External dimensions (W x D x H) including stand *5 | 1128 x 715 x 1219 mm | 1278 x 715 x 1219 mm | 1578 x 715 x 1219 mm | 1878 x 715 x 1219 mm | 2138 x 715 x 1219 mm | |
| 44.4 x 28.1 x 48 in | 50.3 x 28.1 x 48 in | 62.1 x 28.1 x 48 in | 73.9 x 28.1 x 48 in | 84.2 x 28.1 x 48 in | ||
| Weight including stand | 38 kg (83.8 lbs) | 42 kg (92.6 lbs) | 46 kg (101.4 lbs) | 54 kg (119 lbs) | 59 kg (130 lbs) | |
| Compatible OS | Windows 2000 / Windows XP / Windows Vista Macintosh OS 10.2 or later | |||||
| Certifications | UL, cUL, CE marking, RoHS, China RoHS | |||||
- *1 The CB15UB cutter blade is recommended when cutting characters which size is 10 mm or smaller.
- *2 When operated with Graphtec specified media and conditions.
- *3 The CB15UA cutter blade and a reinforced backing sheet must be used when cutting high-intensity reflective film.
- *4 HP-GLTM is a registered trademark of Hewlett-Packard Company.
- *5 Tolerance : +/- 5 mm
