Mimaki has responded to the needs of power users and quick delivery, introducing the next generation of high speed-high quality wide format solvent inkjet printers.

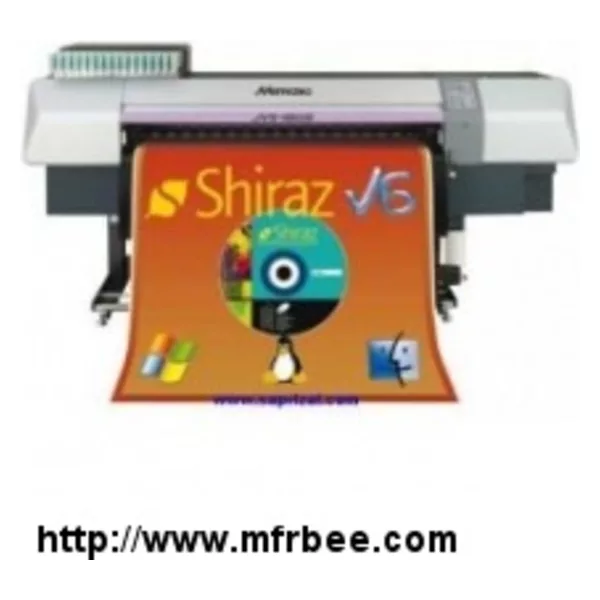

The JV5-160S are the next generation solvent inkjet printers equipped with newly developed print heads. The new JV5 series provides an ultra-high print speed of 40m2/hr (430sq.ft/hr) with a new high quality 540 x 1080 dpi mode, designed for short distance signage and photorealistic applications. The new generation JV5 responds to the needs of power users and quick delivery by using a newly developed print head which carries 4 times as many nozzles as the current JV3 series. In addition to this breakthrough advancement is a recently developed Mimaki head configuration of 4 staggered print heads.
The new JV5 models are equipped with 4 new automatic functions:
These auto functions are designed to total greatly improve operator efficiency, resulting in the highest quality and consistency of the printed work.
Two kinds of solvent inks are available: ES3 ink which is eco-designed & low odor, HS ink for high scratch-resistance and durability (HS ink will be available in the near future)
3 WAY intelligent heating system includes a-large-sized post-heater and an external dryer enabling super-high speed printing and take-up mechanism, allowing media to be printed fast with any kind
of ink.
Model | JV5-160S | |
Print Head | On-demand Piezo head (Array of 4 staggered print heads) | |
Maximum printing width | 1,620mm (63.7") | |
Printing resolution | 540, 720, 1,440 dpi | |
Printing mode (Scan x Feed) |
720 x 540 dpi: Bi-directional & uni-directional | |
540 x 900 dpi: Bi-directional & uni-directional | ||
540 or 720 x 720 dpi: Bi-directional & uni-directional | ||
540 or 720 x 1,080 dpi: Bi-directional & uni-directional | ||
720 x 1,440 dpi: Bi-directional & uni-directional | ||
1,440 x 1,440 dpi: Bi-directional & uni-directional | ||
Ink | Kind | Exclusive solvent ink: ES3, HS, Eco-HS1 |
Supply | Automatic change of double ink cartridges | |
Capacity | 6 color mode: 440 cc cartridge x 2/color, 880 cc/color | |
4 color mode: 440 cc cartridge x 4/color, 1760 cc/color | ||
Media specification |
Size |
Max. width 1,630 mm(64.17") Min. width 297 mm (11.6") |
Thickness | 1.0 mm or below | |
Roll weight | 38 kg (83.7lbs.) or below | |
Printing surface | Face out | |
Inner diameter of paper bobbin/ outer diameter of roll |
2 inch, 3 inch / f200 mm (7.87") or below | |
Media cutting | Cutting in Y direction by cutter at the head | |
Media heater | 3 way intelligent heater (PRE / PRINT / POST) | |
Media take-up device | Roll take-up device (standard), inside / outside selectable | |
Nozzle checking unit (NCU) | Laser system (Class 1 or below) | |
Print gap |
1.5 mm to 7mm, step-less & user setting, (automatic detection of media thickness) |
|
Interface | USB 2.0 | |
Applicable standard |
VCCI Class A, FCC Class A, UL 60950, CE Marking (EMC Directive, Low Voltage Directive) , CB Report, RoHS |
|
Power source specification | AC 200V to 240V ±10%, 50/60 Hz ± 1Hz 15 A or below | |
Power consumption | 3,600 VA or below | |
Operating environment |
Usable temperature: 20°C to 35°C, Humidity: 35 % to 65%Rh, Not condensing |
|
Outer dimension |
(W) x (D) x (H) |
3,120 x 1,050 x 1,540 mm (122.9" x 41.4" x 60.7") |
Weight | 333 kg (733.5lbs.) or below |
