UV-LED line light source system

The UV-LED point light source system utilize LED Luminous form,wide choices of 365nm, 385nm,395nm, 405nm wavelength in different power correspond Different UV curing glue, UV ink, UV varnish, UV paint, etc., while correspond requirements of different materials. UV LED light source machine, high purity irradiation, no effect of UV radiation and heat, long life time, and utilize cable output,reduce the cost of equipment, compare others,lower consumption in UV-LAMP Power without mercury, is a new type of energy saving products, so the product's UV curing faster, more efficient, greener, safer and more environmentally.

Features:

◆ Universal Design, LCD, intuitive operation

◆ fixed power, the power ladder, perfectly performance

◆ foot control, manual automatic, easy control

◆ IO signal, with the PLC automated production processes

◆ direct COM, convenient peripheral communication

◆ irradiation power time countdown digital display, easy and intuitive understanding of the irradiation process

◆ interface parameter settings locked to prevent adverse

◆ mistake by automatically retrieve more error alarm

◆ irradiation process into easily query channel UV irradiation

★ small thermal radiation, the UV-LED Luminous parts, the spectral wavelength is 365nm, no infrared light, so no temperature

raise on the surface of our products.

★ issued ultraviolet light with high purity and high-energy, utilize the latest high-energy UV LED, UV glue curing quickly, highly

increase the efficience of produce.

★ reduce cost, the life time can reach 25000-30000 hours, but life time of traditional irradiation machine is about 2000 hours,

utilize cable output, no fiber optic light guide, LED can help you reduce the cost of equipment, improve equipment utilization.

★ energy saving, low power consumption, no lamp warm-up while use, immediately reach 100% high-power, ready to use, high

efficiency UV photoelectric conversion ,beside no toxic mercury and ozone, it is a safer and more environmentally option instead

of traditional light source.

★ small size design, the volume of LED controller compare with the traditional LAMP irradiation machine is 1/8, making the device

easier to install, Fully consider the precision production space requirements in small exposure head design,as to make the

installation easier.

★ device can be used in different processes, according to the actual situation, the user can add their own optional extension cable.

★ unique cooling fan, heat the chips quickly discharged, increase power output stability, extend LED life time.

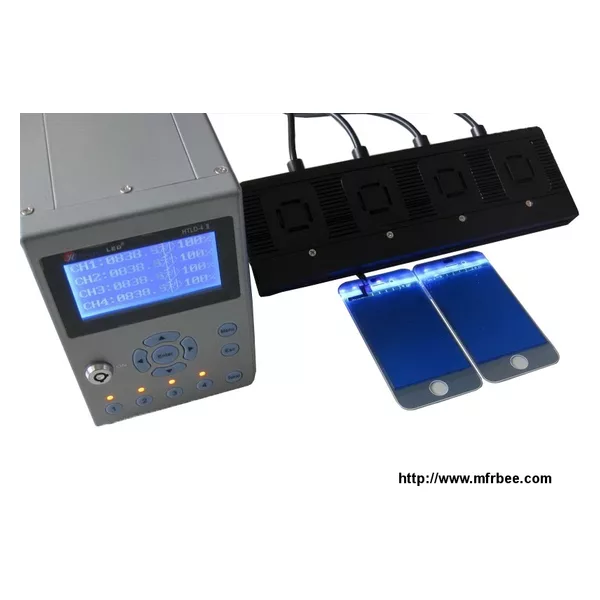

★ A host controller can simultaneously and independently operate four LED heads or simultaneous use.

UV-LED line light source Irradiation head Specifications：

Model 　　 Wavelength(nm) Cooling Light area(mm) Light power density(w/cm2)　 Irradiation height(mm)

HTLD-L6-4X70-365　 365　 Air cooling 　　 4X70 1.2 　 5-10

HTLD-L10-4X100-365 365　 Air cooling　　 4X100 1.2 5-10

HTLD-L14-2X150-365 365　 Air cooling　　 2X150 2.4 5-10

HTLD-L24-3X240-365　 365　 Air cooling　　 3X240 1.6 5-10

HTLD-L30-4X300-365 365　 Air cooling　　 4X300 1.5 5-10

HTLD-L30-10X70-405 405　 Air cooling　　 10X70 2.4 5-10

HTLD-L24-4X60-环形　 365　 Air cooling　　 4X60（4Article） 1.5 5-10

HTLD-L30-10X150-395 395　 Air cooling　　 10X150 1.2 5-10

HTLD-L96-10X240-395 395　 Air cooling　　 10X240 2.4 　 5-10

HTLD-L96-15X240-405 405　 Air cooling　　 15X240 1.6 　 5-10

Another different wavelengths, different sizes, different optical power density line source , the surface light source can be customized, and more high-power UV-LED can meet your requirement.

UV-LED light source machine Main applications:

◆ hard drive head assembly (head of packaging, the line is fixed, bearings, coils, chip bonding, etc.)

◆ motors and components assembly (wire coil fixed coil end fixed, PTC / NTC element bonding,

protecting the transformer core)

◆ DVD / digital camera (lenses, lens attached, circuit board reinforcement)

◆ sensor production (gas sensors, photoelectric sensors, fiber optic sensors, photoelectric encoder, etc.)

◆ phone components assembly (camera lens, earpiece, microphone, housing, LCD modules, touch

screen coating, etc.)

◆ TFT-LCD LCD panel irrigation crystal interface package

◆ TFT-LCD LCD panel FPC paste package

◆ Yung-touch fitting cured

◆ PCB industry LED VU light curing applications

◆ optical industry -ST-LED UV light curing applications UV curing applications

◆ laser package

◆ optics assembly (lens group, prisms, DLP light engine assembly, CCD, COMS)

◆ optical communications industry yuan source device (PLC splitters, WDM WDM, array waveguide

gratings AWG and other glass packaging structural bonding or potting, etc.)

◆ research and institutes -ST-LED UV light curing applications

◆ Medical Devices curing applications
