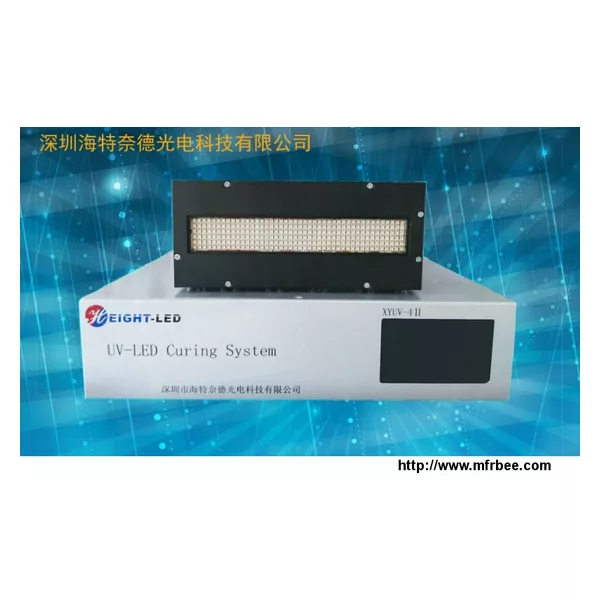

LED UV curing system
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- cartons
- Delivery
- 30 Days
Specifications
UV-LED surface light source illuminate system
The UV-LED point light source system utilize LED Luminous form,wide choices of 365nm,
385nm,395nm, 405nm wavelength in different power correspond Different UV curing glue, UV ink, UV
varnish, UV paint, etc., while correspond requirements of different materials. UV LED light source
machine, high purity irradiation, no effect of UV radiation and heat, long life time, and utilize cable
output,reduce the cost of equipment, compare others,lower consumption in UV-LAMP Power without
mercury, is a new type of energy saving products, so the product's UV curing faster, more efficient,
greener, safer and more environmentally.
Features:
1.Universal Design, LCD, intuitive operation
2.fixed power, the power ladder, perfectly performance
3.foot control, manual automatic, easy control
4.IO signal, with the PLC automated production processes
5.direct COM, convenient peripheral communication
6.irradiation power time countdown digital display, easy and intuitive understanding of the irradiation
process
7.interface parameter settings locked to prevent adverse
8.mistake by automatically retrieve more error alarm
9.irradiation process into easily query channel UV irradiation
10.small thermal radiation, the UV-LED Luminous parts, the spectral wavelength is 365nm, no infrared
light, so no temperature raise on the surface of our products.
11.issued ultraviolet light with high purity and high-energy, utilize the latest high-energy UV LED, UV glue
curing quickly, highly increase the efficience of produce.
12.reduce cost, the life time can reach 25000-30000 hours, but life time of traditional irradiation machine
is about 2000 hours, utilize cable output, no fiber optic light guide, LED can help you reduce the
cost of equipment, improve equipment utilization.
13.energy saving, low power consumption, no lamp warm-up while use, immediately reach 100%
high-power, ready to use, high efficiency UV photoelectric conversion ,beside no toxic mercury and
ozone, it is a safer and more environmentally option instead of traditional light source.
14. small size design, the volume of LED controller compare with the traditional LAMP irradiation
machine is 1/8, making the device easier to install, Fully consider the precision production space
requirements in small exposure head design,as to make the installation easier.
15. device can be used in different processes, according to the actual situation, the user can add their
own optional extension cable.
16. unique cooling fan, heat the chips quickly discharged, increase power output stability, extend LED life
time.
17. A host controller can simultaneously and independently operate four LED heads or simultaneous use.
UV-LED spectral distribution UV-LED energy dampening
UV-LED light source controller technical specifications:
UV-LED surface light source Irradiation head Specifications：
Model Wavelength(nm) Cooling Light area(mm) Light power density(w/cm2) Irradiation height(mm
HTLD-S30-20X30-395 395 Air cooling 20X30 3.0 5-10
HTLD-S36-100X100-405 405 Air cooling 100X100 0.2 5-10
HTLD-S40-100X120-365 365 Air cooling 100X120 0.2 5-10
HTLD-S12-100X120-365 365 Air cooling 100X120 0.06 5-10
HTLD-S60-25X60-405 405 Air cooling 25X60 1.5 5-10
HTLD-S20-100X130-660 660 Air cooling 100X130 0.11 5-10
HTLD-S12-100X130-365 365 Air cooling 100X130 0.05 5-10
HTLD-S100-100X100-405 405 Air cooling 100X100 0.6 5-10
Another different wavelengths, different sizes, different optical power density line source , the surface
light source can be customized, and more high-power UV-LED can meet your requirement.
UV-LED light source machine Main applications:
1. hard drive head assembly (head of packaging, the line is fixed, bearings, coils, chip bonding, etc.)
2. motors and components assembly (wire coil fixed coil end fixed, PTC / NTC element bonding,
protecting the transformer core)
3. DVD / digital camera (lenses, lens attached, circuit board reinforcement)
4. sensor production (gas sensors, photoelectric sensors, fiber optic sensors, photoelectric encoder, etc.)
5. phone components assembly (camera lens, earpiece, microphone, housing, LCD modules, touch
screen coating, etc.)
6. TFT-LCD LCD panel irrigation crystal interface package
7. TFT-LCD LCD panel FPC paste package
8. Yung-touch fitting cured
9. PCB industry LED VU light curing applications
10. optical industry -ST-LED UV light curing applications UV curing applications
11. laser package
12. optics assembly (lens group, prisms, DLP light engine assembly, CCD, COMS)
13. optical communications industry yuan source device (PLC splitters, WDM WDM, array waveguide
gratings AWG and other glass packaging structural bonding or potting, etc.)
14. research and institutes -ST-LED UV light curing applications
15. Medical Devices curing applications
Shenzhen Height- Led Opto-electronic Technology Co., Ltd.
Address:2nd floor, Sanhe international science and technology Building Block B,Lai Wu Shan Village ,Da
Lang Road,Long Hua District,Shen Zhen,Guang Dong Province,China.
Tel: 0755-27381112 0755-28095579
Fax: 0755-22718753
E-mail: info@height-led.com
Website: www.height-led.com
