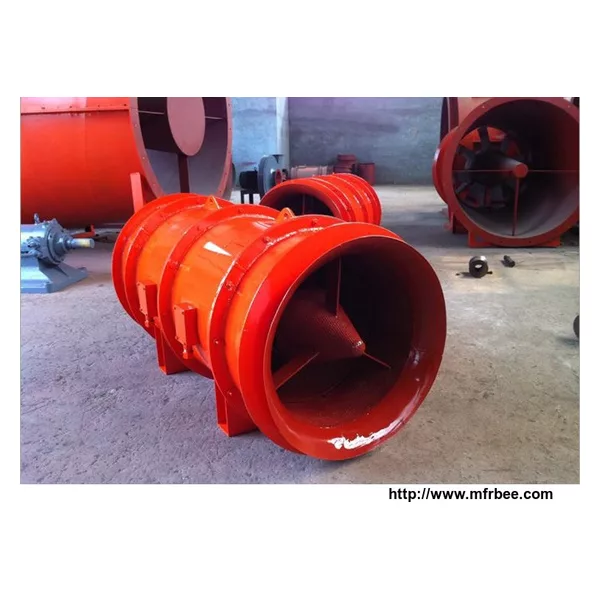

Axial Flow Fan
Product Quick Detail
- Minimum Order
- 1
- FOB Price
- USD $6,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Packaging
- 1 pc per package
- Delivery
- 15 Days
Specifications
Specification
1.Electric Current Type: AC
2.Mounting: Free Standing
3.Blade Material: steel plate Q235
4.Air Volume: 600-370 m3/min
5.Rated Power: 2*30KW
6.Rated speed: 2950 r/min
7.Rated operational voltage: 380/660V
8.Rated operational current: 42.2/24.4A
9.Total pressure : 1050~5400Pa
Feature:
1. The product is composed of explosion-proof motor, vanes, air duct and others;
2. It's in low noise, low consumption and perfect performance;
3. Besides being used for ventilation and exhausting, it also can be installed in series to improve the pressure in pipe;
4. The enclosure material can be armor plate or fiber flass reinforced plastic;
5. Wiring with cable.
