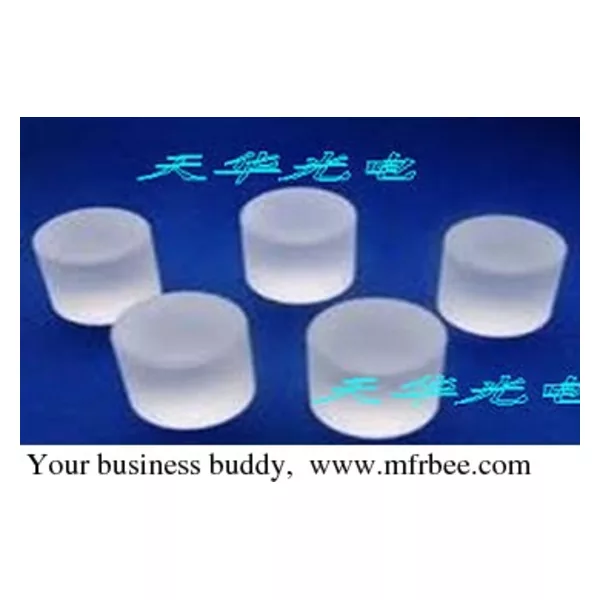

Rod Lenses

Place Of Origin
changchun
Packaging
safety carton package
Delivery
15 Days

Rod Lenses are generally used as light pipes. Its optical principle is similar to fiber optics where light can be transmitted from one end to the other with relatively small leakage. Rod Lenses can be used as Cylindrical Lenses. In certain application, Rod Lenses can also be used as homogenizers. Common Endoscopes and Borescopes both have Rod Lens elements.

Specifications:
Material: BK7 grade A optical glass or Fused Silica

Diameter Tolerance: +/-0.05mm~+/- 0.002mm

Length Tolerance: +/-0.1mm~+/-0.02mm

Surface Figure:λ/2@633nm~λ/10@633nm

Surface Quality:60-40~20-10

We will also do according to the specifications such as size, structure, material, surface treatment and so on that the customers required. We supply them with good quality and low price. Please contact us to know details. Besides, there are a large volume of optical components in various shapes and sizes in stock to facilitate quick deliveries.
