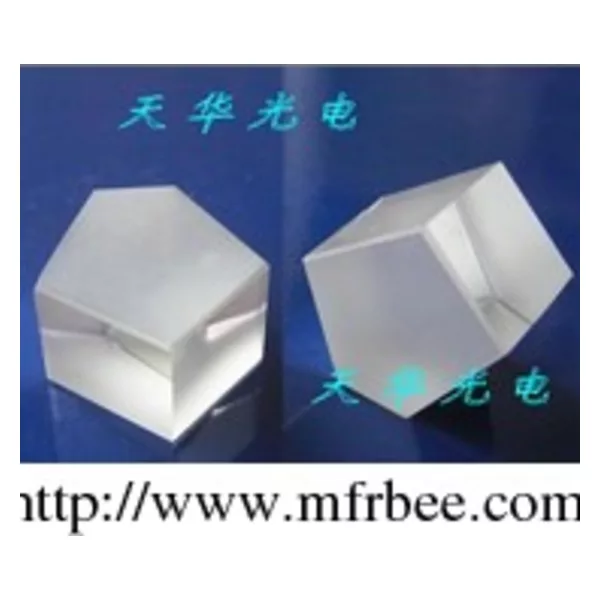

Penta Prisms

Penta Prisms is a five-sided prism. It reflects light rays through a 90° angle by two reflections and does invert or revert the image. The reflecting surfaces are aluminized. Slight movement of the prism does not affect the true right angle at which light rays are reflected. It also shortens the optical path length of an instrument.

1.material: BK7,Fused Silica and other optical glass

2. Length tolerance: ±0.2mm

3. Surface quality: 60/40

4. Flatness: λ/10@633nm

5. Bevelling: ＜0.2mm×45°

6. 90° Angle deviation tolerance: according to customer requirement

We will also do according to the specifications such as size, structure, material, surface treatment and so on that the customers required. We supply them with good quality and low price. Please contact us to know details. Besides, there are a large volume of optical components in various shapes and sizes in stock to facilitate quick deliveries.
